TECH SPECS
Style. Attitude. Capability.
ENGINE & TRANSMISSION
Type
Liquid-cooled, parallel twin, 8 valve, SOHC, 270° firing order
Capacity
1200 cc
Bore
97.6 mm
Stroke
80 mm
Compression
11:1
Max power
90 PS / 89 bhp (66.2 kW) @ 7,300 rpm
Max Torque
110 Nm @ 4,500 rpm
System
Multipoint, sequential electronic fuel injection with electronic throttle control
Exhaust
Single skin, brushed 2-into-1 exhaust system with high-level silencer
Final drive
O-Ring Chain
Clutch
Wet, multi-plate assist
Gearbox
6 Speed
CHASSIS
Frame
Tubular steel, steel cradles
Swingarm
Twin-sided, fabricated aluminium
Front wheel
Spoked, Aluminium rimmed 36-spoke 21 x 2.15 in
Rear wheel
Spoked, Aluminium rimmed 32-spoke, 17 x 4.25 in
Front tyre
90/90-21
Rear tyre
150/70 R17
Front suspension
Showa 47 mm upside-down BP-SFF forks, preload adjustment, compression and rebound damping. 250 mm wheel travel
Rear suspension
Öhlins twin (RSU) with piggy-back reservoirs and twin springs, preload adjustment, compression and rebound damping. 250 mm wheel travel
Front brakes
Twin 320 mm discs, Brembo 4-piston M4.30 radial monoblock calipers, OCABS
Rear brakes
Single, 255 mm disc, Nissin single-piston floating caliper, OCABS
Instruments
Multi-function instruments with colour TFT screen
DIMENSIONS & WEIGHTS
Width
905 mm
Height
1250 mm
Seat height
870 mm
Wheel base
1570 mm
Rake
26.9 °
Trail
129 mm
Wet weight
230 kg
Fuel capacity
15 l
FUEL CONSUMPTION
Fuel consumption
4.4 l/100km
CO2 Figures
g/km
Co2 standard
Euro 5+
Standard description
CO2 emissions and fuel consumption data are measured according to regulation 168/2013/EC. Figures for fuel consumption are derived from specific test conditions and are for comparative purposes only. They may not reflect real driving results.
Capability without compromise
Top-specification Showa upside-down forks and fully adjustable Öhlins piggy-back shocks provide serious wheel travel for plush control and big-hit capability.
Command your ride
Wide adjustable bars, upright stance and full adjustability create confident control seated or standing.
Precision and purpose
Top-tier components, tuned and integrated for performance that inspires confidence everywhere.
Fully protected
Durable finishes and protection for bike and rider stand up to real-world adventure.
Fully adjustable 47 mm Showa upside-down forks up front allow for preload, compression and rebound damping adjustment to nail the perfect damping response for the terrain and your riding style.
Long-travel cast-aluminium swing arm with fully adjustable Öhlins piggy-back twin shocks, each fitted with twin-springs for unrivalled comfort, and control across a generous 250 mm of wheel travel.
Powerful Brembo Stylema M4.30 radial monobloc calipers on twin 320 mm front discs deliver class-leading stopping power. These are matched to a Nissin rear caliper and 255 mm disc and actuated via a Brembo radial master cylinder and micro-adjustable lever.
Lean-sensitive Optimised Cornering ABS and Traction Control increase confidence through and out of every turn and can be switched off completely for advanced off-road riding.
Beautiful and resilient side-laced tubeless wheels with stainless-steel spokes and strong aluminium rim are sized for assured handling on and off road, with a commanding 21-inch front. Factory fit Metzeler Tourance with handbook-approved Michelin Anakee Wild as an off-road option for the most demanding off-road riders.
Multi-adjustable, 65 mm wider handlebars (vs the Scrambler 1200 X) with reversible risers and a removable 10 mm spacer to fine-tune the reach and height, plus wide grippy pegs with removable rubbers, removable pillion pegs and a brake pedal that can be easily adjusted between road and off-road riding boots.
Irresistible energy
Effortless roll-on performance, instant punch and intuitive throttle response for thrilling performance and the precise control required for loose surfaces – the XE slides on demand.
Engineering with soul
Beneath black powder-coated engine covers and bright-machined fins is a high-power British twin that blends heritage feel with contemporary performance.
The soundtrack of the trail
Signature brushed stainless high-level twin silencers deliver a rich, distinctive note with an addictive crackle on the overrun.
1200 cc High-Power Bonneville with low-inertia crank and high-compression head, dedicated Scrambler tune for effortless road pace and tractable off-road drive.
110 Nm @ 4,250 rpm with an even broader spread of torque and 90 PS peak power for easy yet exhilarating acceleration and instant response.
Large single 50 mm throttle body and tighter revised header with integrated catalyser improve gas flow and heat management for stronger performance and rider comfort.
Six-speed gearbox and torque-assist clutch give light lever effort and smooth, consistent engagement in every situation.
Signature high-level twin silencers in brushed stainless steel deliver the rich, distinctive Scrambler soundtrack.
Perfectly tuned
With Six Riding modes (Road, Rain, Sport, Off-Road the XE-exclusive Off-Road Pro and Rider-configurable) throttle response, anti-lock braking and traction control is adapted to suit the terrain and conditions.
Control in all conditions
Optimised Cornering ABS and Traction Control add confidence on slippery curves and loose terrain; fully disabled in Off-Road Pro mode for full freedom to attack the toughest terrain.
Information in focus
Full-colour TFT instruments with two themes and customisable layouts, plus intuitive backlit switchgear.
Intuitive single-button cruise control: press to activate, press again to set; a gentle close of the throttle disengages, relaxed miles made simple.
Beautifully integrated full-colour TFT with two themes (Cronos and Quartz), each offering three user-defined layouts plus high/low contrast (auto or manual). Optional start-up greeting displays the rider’s name.
Backlit switchgear and a five-way joystick make navigating modes and menus clear and effortless in all conditions.
My Triumph connectivity unlocks phone, music and turn-by-turn navigation via an accessory Bluetooth module; under-seat USB keeps devices protected and charged up. Full LED lighting with DRL provides a distinctive light signature and excellent visibility.
Commanding silhouette
Impressive ground clearance, beefy long-travel forks with a 21-inch front wheel, wide bars and sturdy handguards showcase the XE's intent.
Authentic scrambler style
Purpose-driven design inspired by the original factory Scramblers - built for the trail and honed for adventure.
Flawless execution
Premium materials and meticulous attention to detail with refined finishes across every touchpoint.
Commanding height and poise with an unmistakable silhouette, rugged stance, sculpted high-level exhaust, seamless tank and a black bench seat with ribbed detail.
Function and finish - premium detailing throughout: brushed aluminium Monza filler cap, clear-anodised aluminium swing arm, brushed aluminium badges, number-board, mudguards and sump guard.

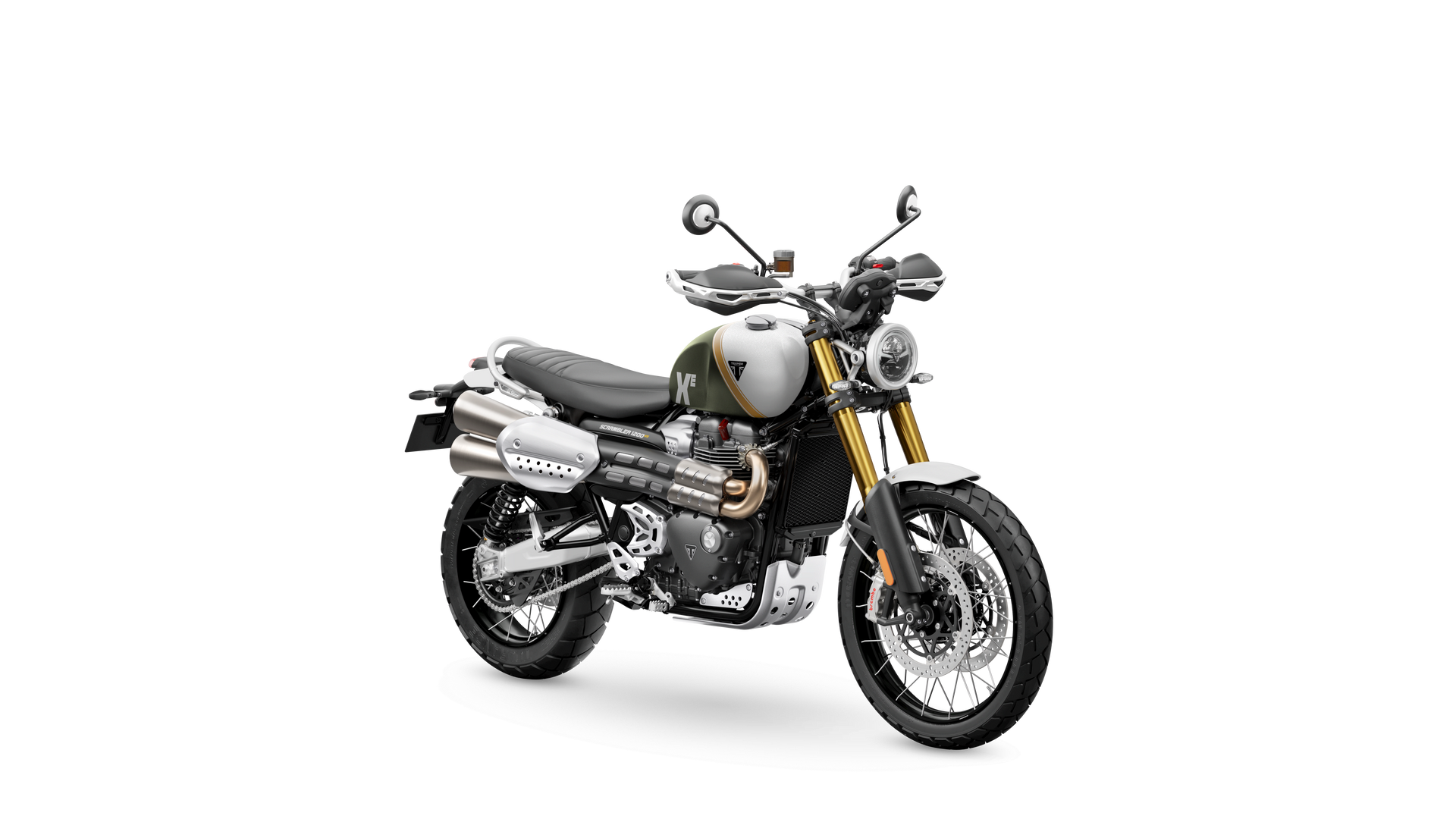

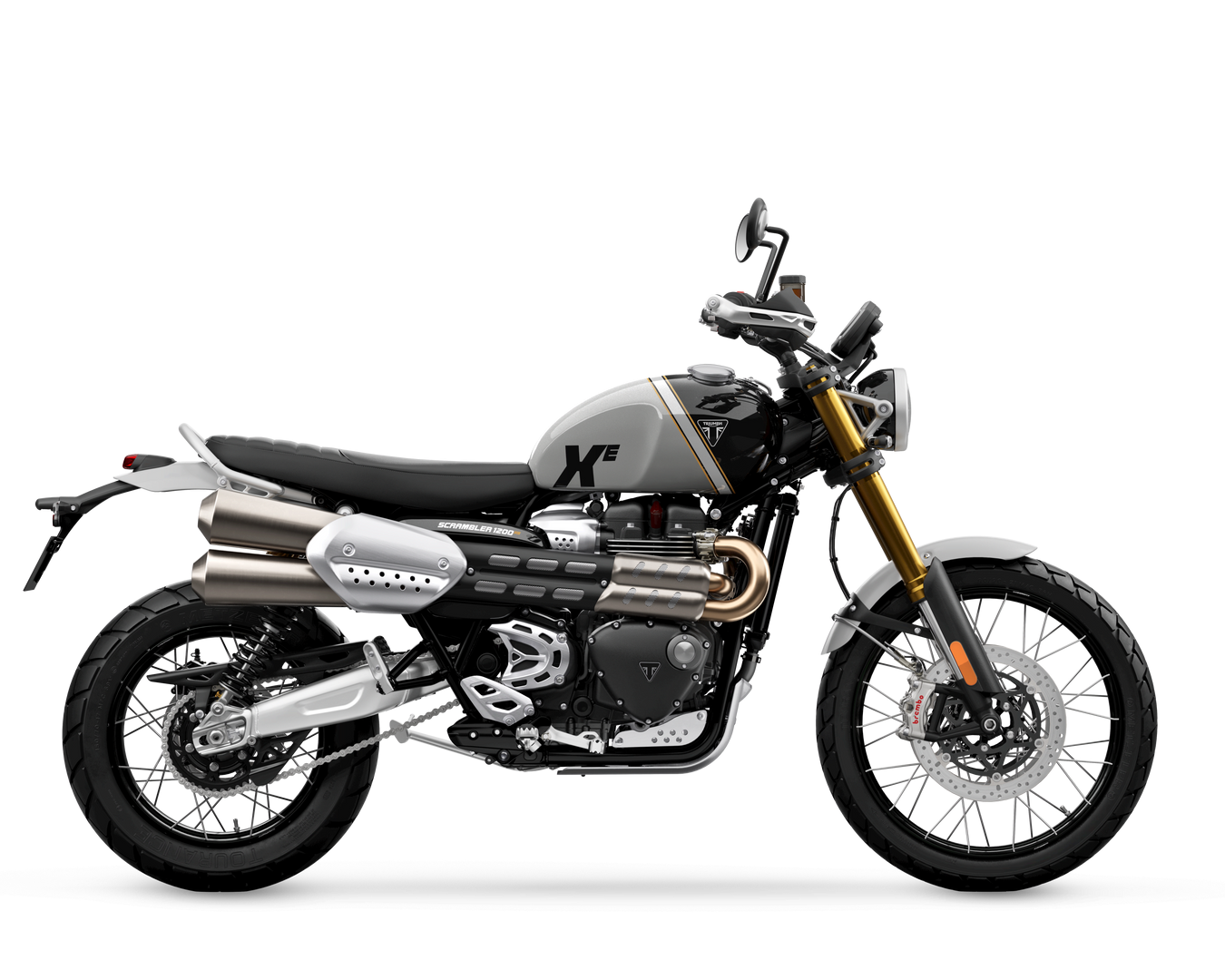

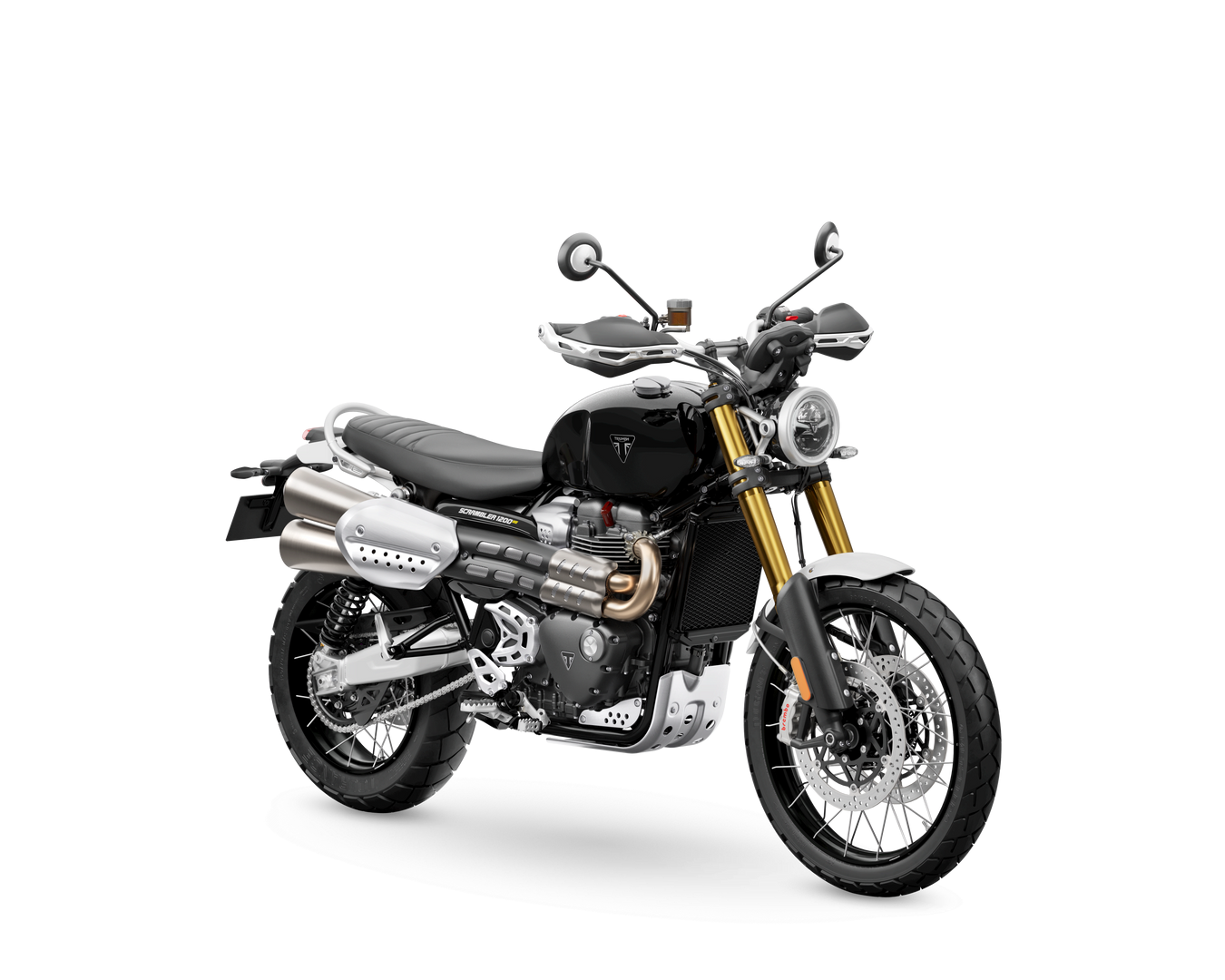

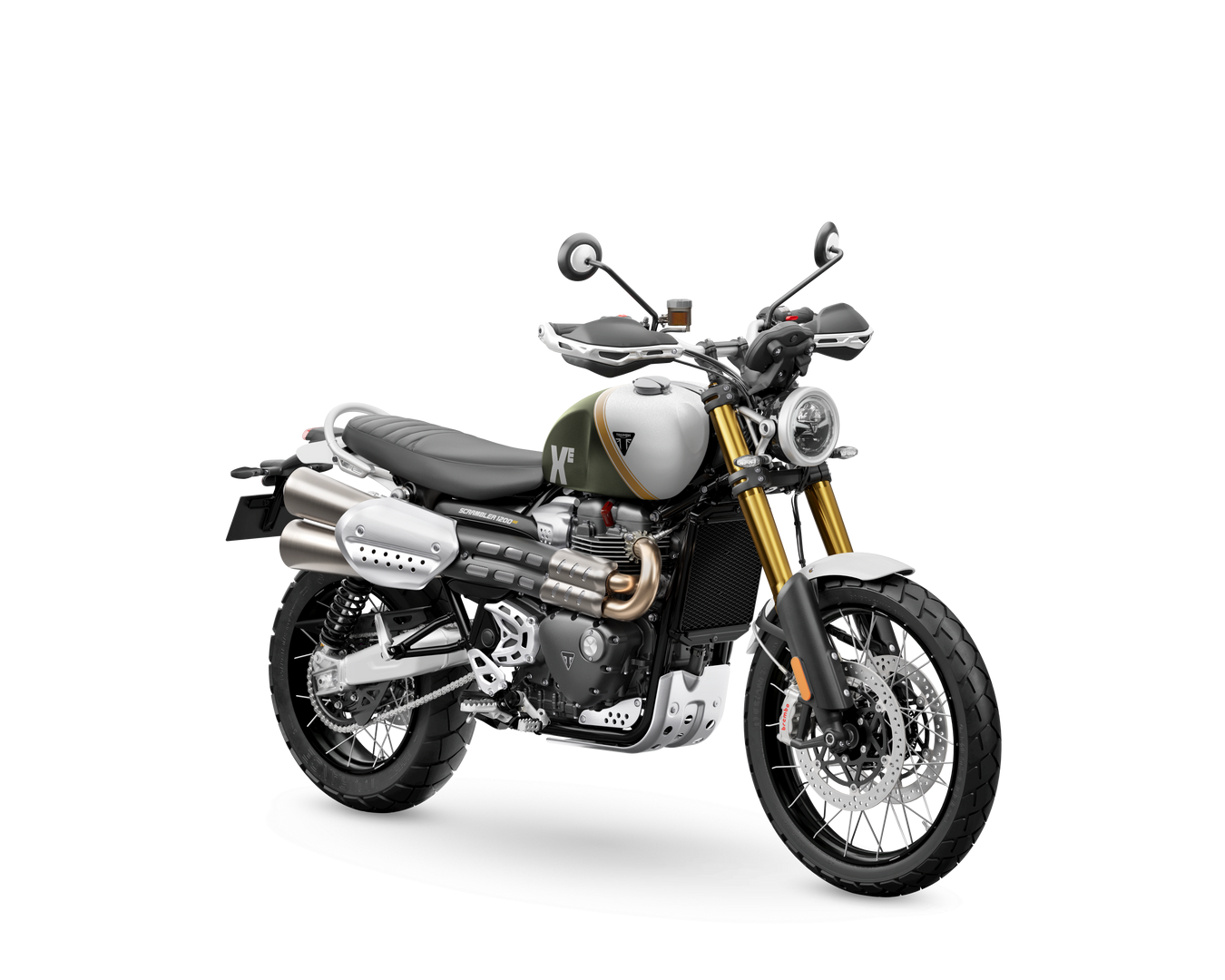

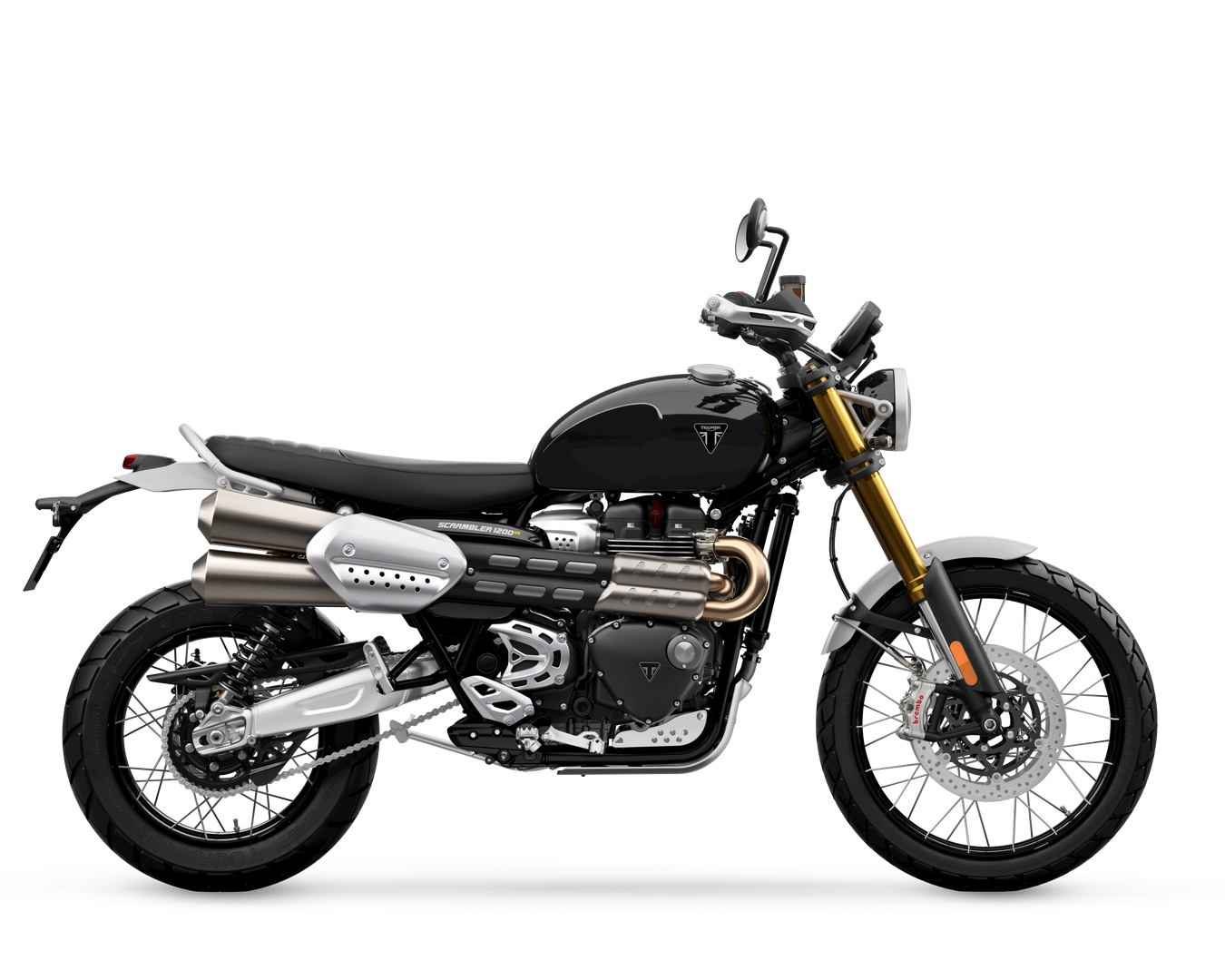

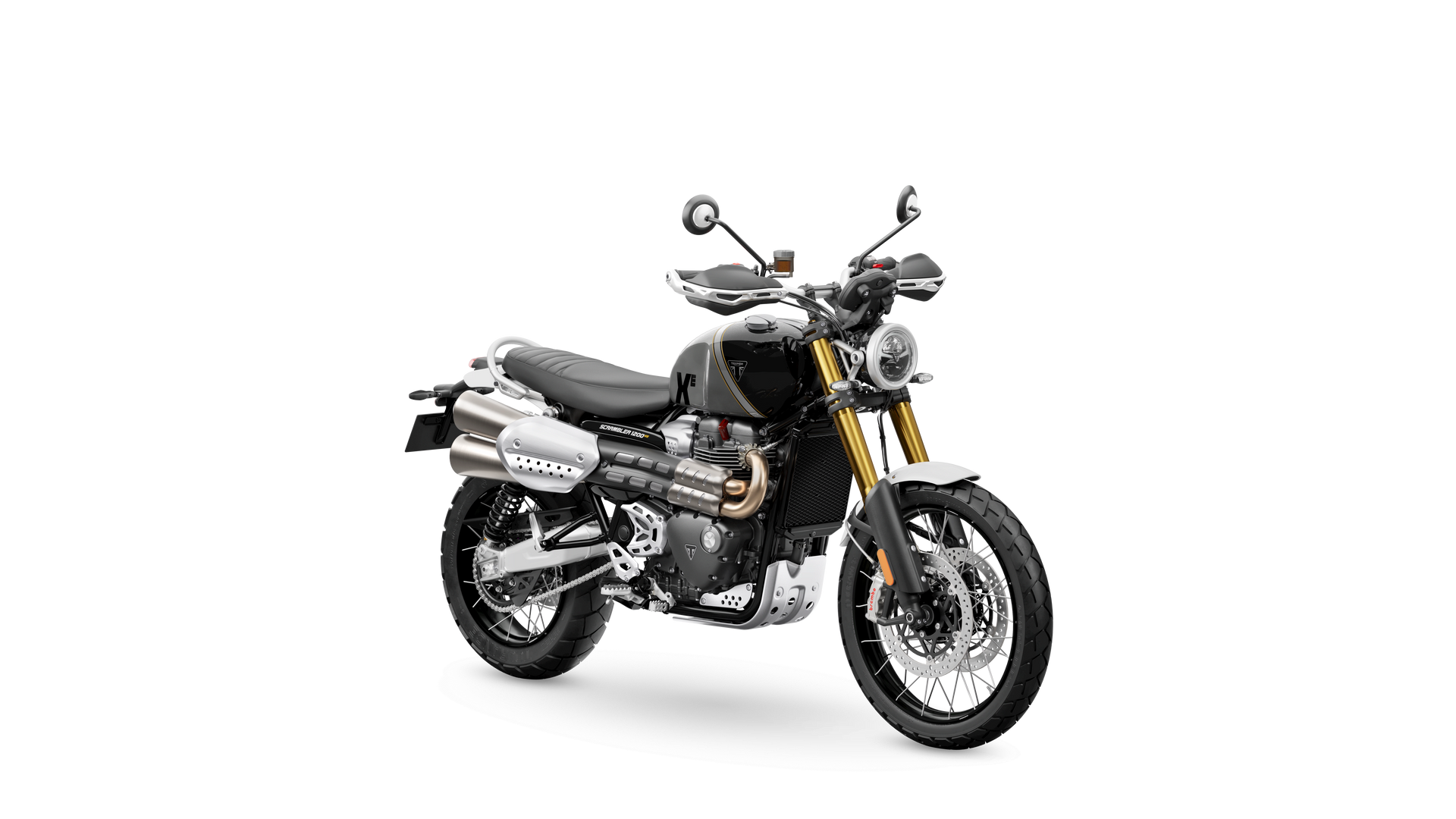

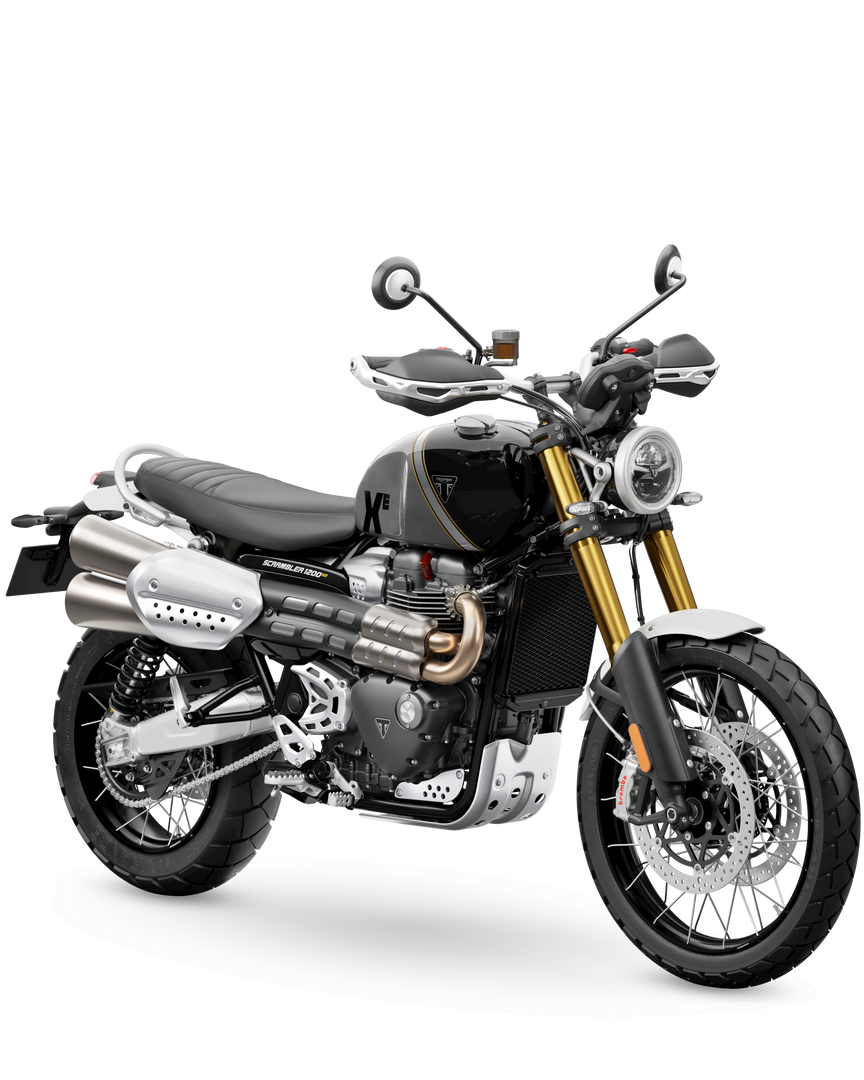

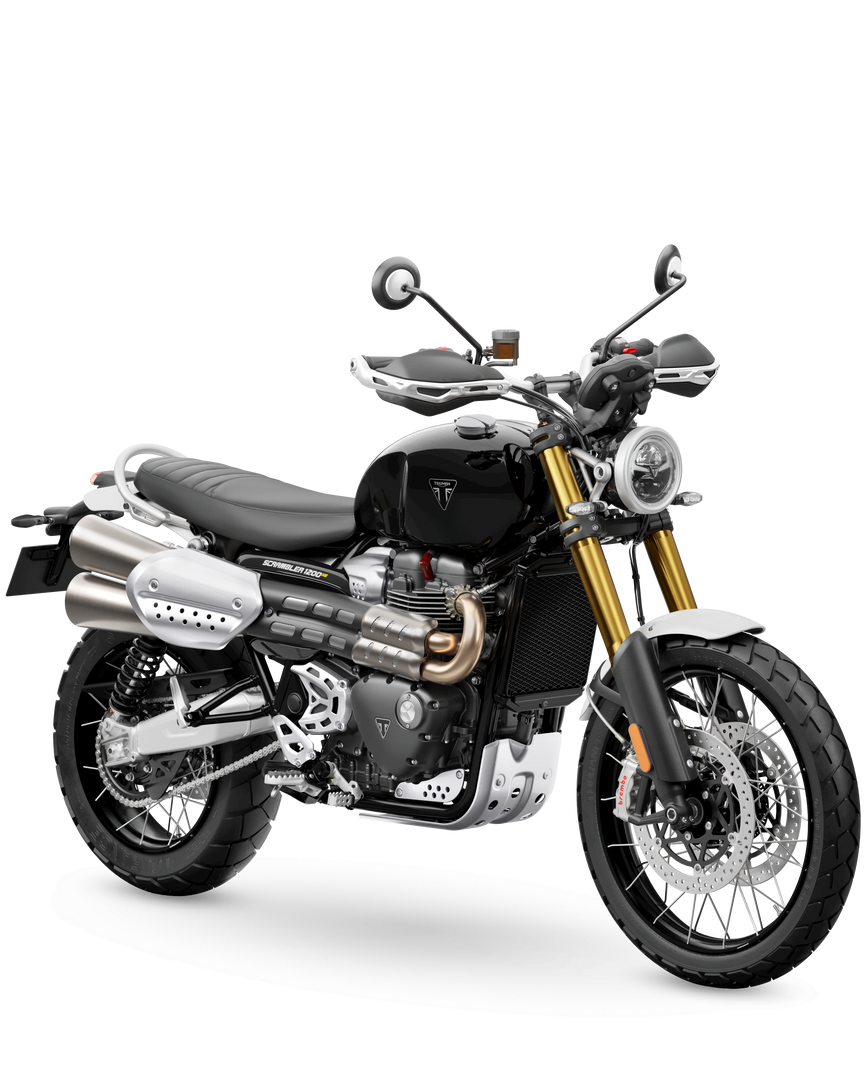

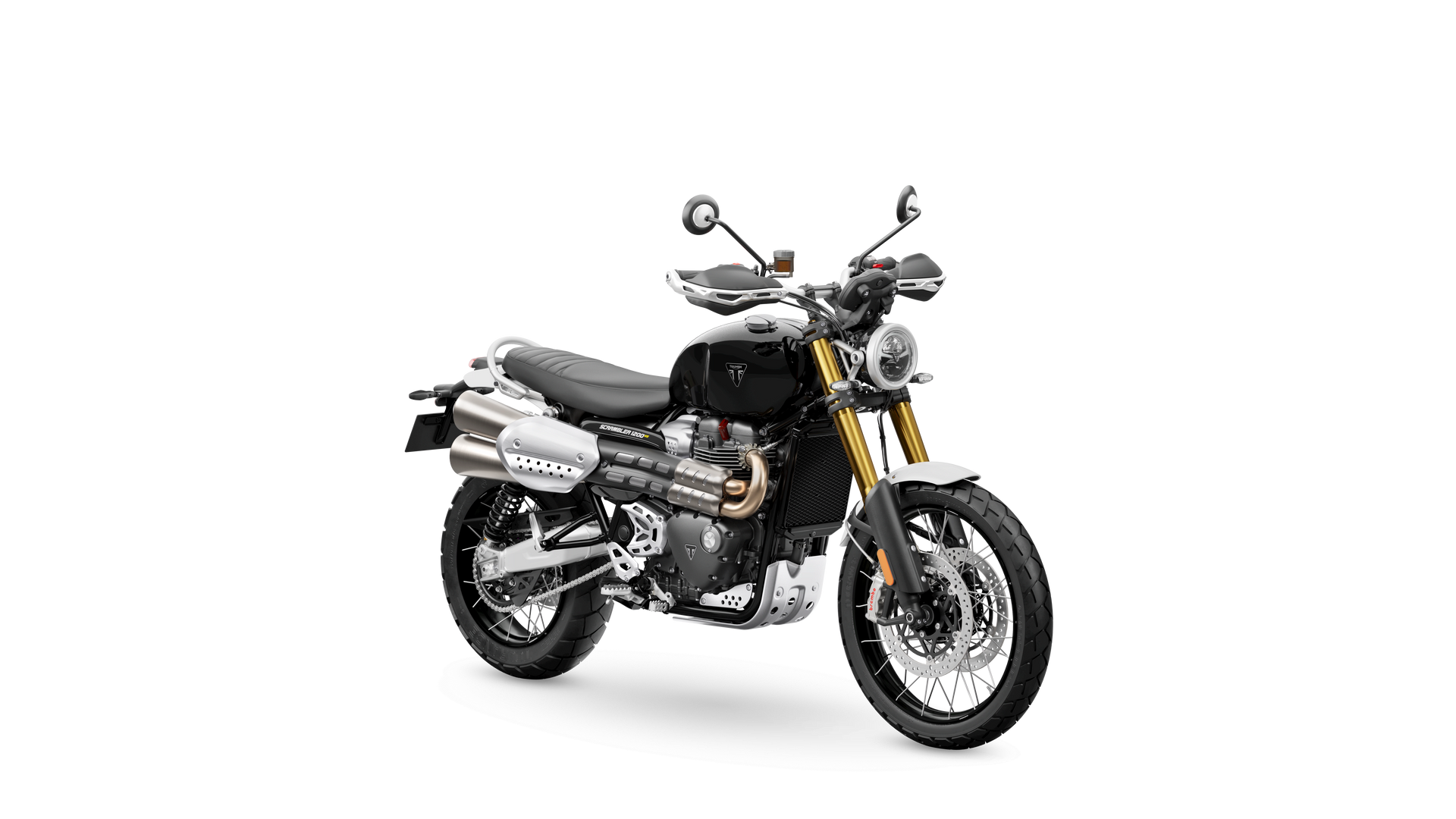

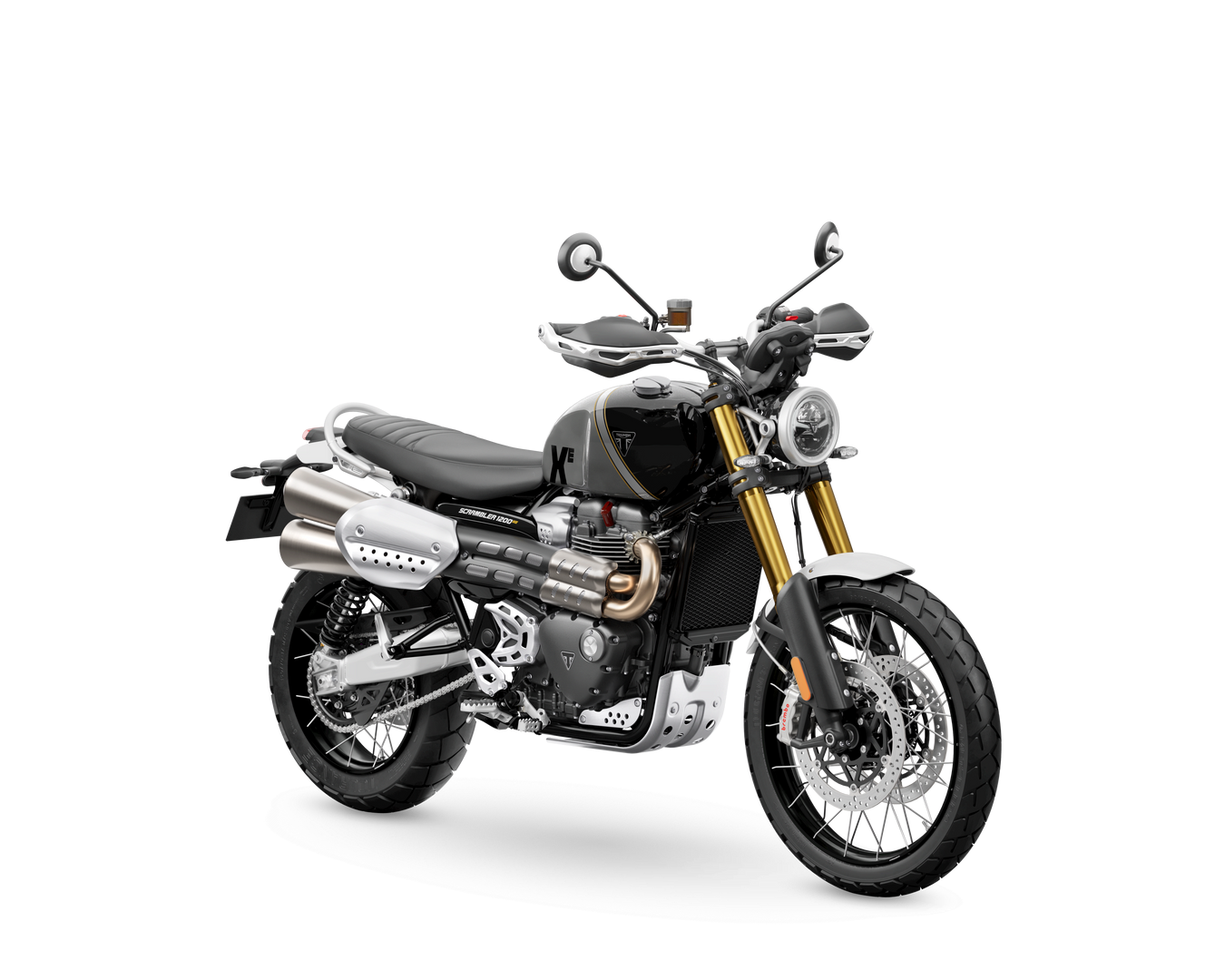

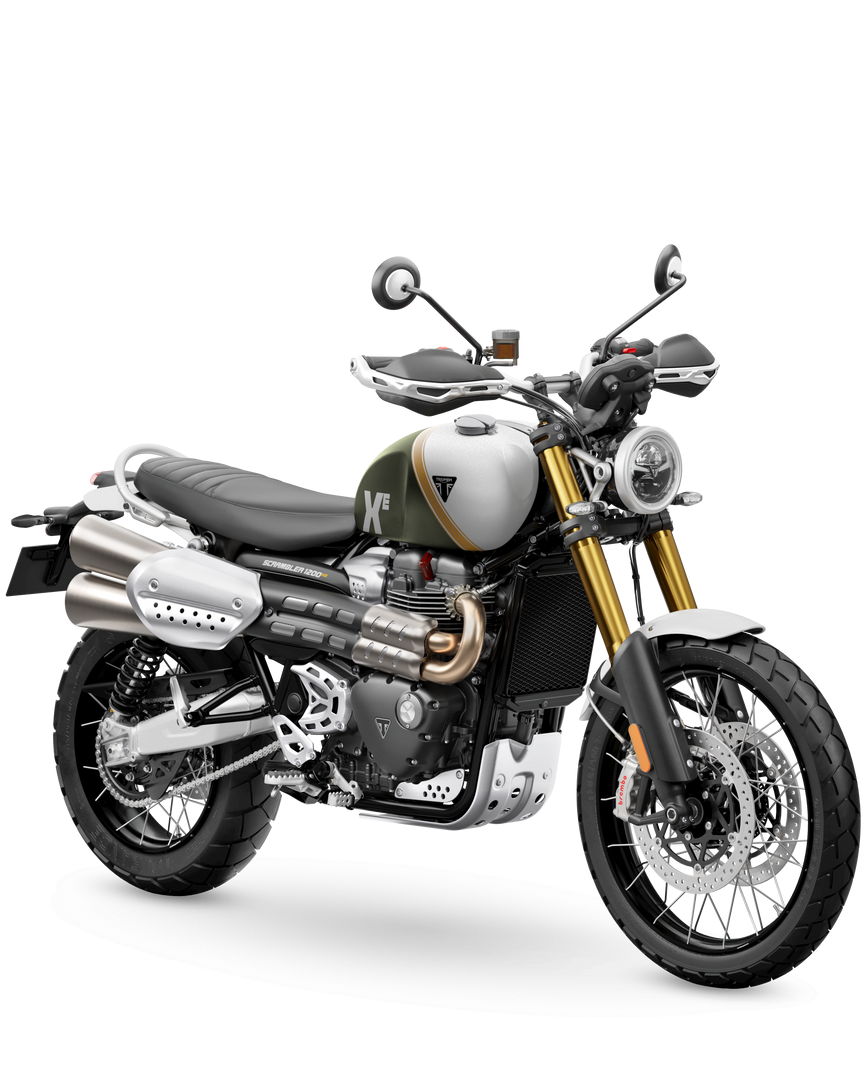

Three colour schemes: signature Matt Khaki Green with Matt Crystal White, contemporary Silver Ice and Phantom Black with Empire Gold details, and the timelessly elegant Sapphire Black.
Over 70 genuine accessories to tailor touring comfort, day-to-day practicality or style, all designed and developed in-house and covered by the same unlimited-mileage warranty when fitted at purchase.
