SPECIFICATIONS

ENGINE & TRANSMISSION
Type
Liquid-cooled, inline 3-cylinder, 12 valve, DOHC
Capacity
765 cc
Bore
78 mm
Stroke
53.4 mm
Compression
13.25:1
Max power
130 PS / 128.2 bhp (95.6 kW) @ 12,000 rpm
Max Torque
80 Nm @ 9,500 rpm
System
Multipoint, sequential electronic fuel injection with electronic throttle control
Exhaust
Stainless steel 3 into 1 header system with low single sided stainless steel silencer
Final drive
X-ring chain
Clutch
Wet, multi-plate, slip and assist
Gearbox
6 Speed
CHASSIS
Frame
Aluminium beam twin-spar frame, 2 piece high pressure die cast rear subframe
Swingarm
Twin-sided, cast aluminium alloy
Front wheel
Cast aluminium alloy, 5 spoke, 17 x 3.5 in
Rear wheel
Cast aluminium alloy 5 spoke, 17 x 5.5 in
Front tyre
120/70 ZR 17
Rear tyre
180/55 ZR 17
Front suspension
Öhlins NIX30, adjustable compression and rebound damping, and preload adjustment. 115 mm wheel travel
Rear suspension
Öhlins STX40 piggyback reservoir monoshock, adjustable compression and rebound damping, and preload adjustment. 131.2 mm wheel travel
Front brakes
Twin, 310 mm floating discs, Brembo Stylema 4-piston radial monobloc calipers, OCABS, Brembo MCS radial master cylinder
Rear brakes
Single, 220 mm disc, Brembo single-piston caliper, OCABS
Instruments
5-inch, TFT, full colour
DIMENSIONS & WEIGHTS
Width
765 mm
Height
1051 mm
Seat height
839 mm
Wheel base
1397 mm
Rake
23 °
Trail
95.3 mm
Wet weight
188 kg
Fuel capacity
15 l
CO2 FIGURES
Mileage
54.3 mpg
Fuel consumption
5.2 l/100km
CO2 Figures
g/km
Co2 standard
Euro 5+

Standard description
CO2 emissions and fuel consumption data are measured according to regulation 168/2013/EC. Figures for fuel consumption are derived from specific test conditions and are for comparative purposes only. They may not reflect real driving results.

PURE RACE-BRED PERFECTION UPGRADED.

ULTIMATE TRACK PERFORMANCE

Class leading performance from the same 765 cc Triple engine that powers the Moto2™ grid delivering responsive acceleration and the trademark Street Triple soundtrack.

The same 765 cc Triple that powers the Moto2™ grid, delivering 130 PS peak power at 12,000 rpm.

TRIPLE ADVANTAGE

The ultimate blend of low-end torque and top-end power from the triple engine. Exhilarating usable torque is available from low down and all the way through the rev range, peaking at 80 Nm at 9,500 rpm.

An optimised engine tune delivers instantaneous responsiveness delivering faster acceleration for ultimate track performance.

PRECISION HANDLING

ÖHLINS SUSPENSION

The fully adjustable Öhlins NIX Upside Down Forks paired with an STX40 RSU enable the rider to fine tune the suspension set up for precision handling and control.

FOCUSED ERGONOMICS

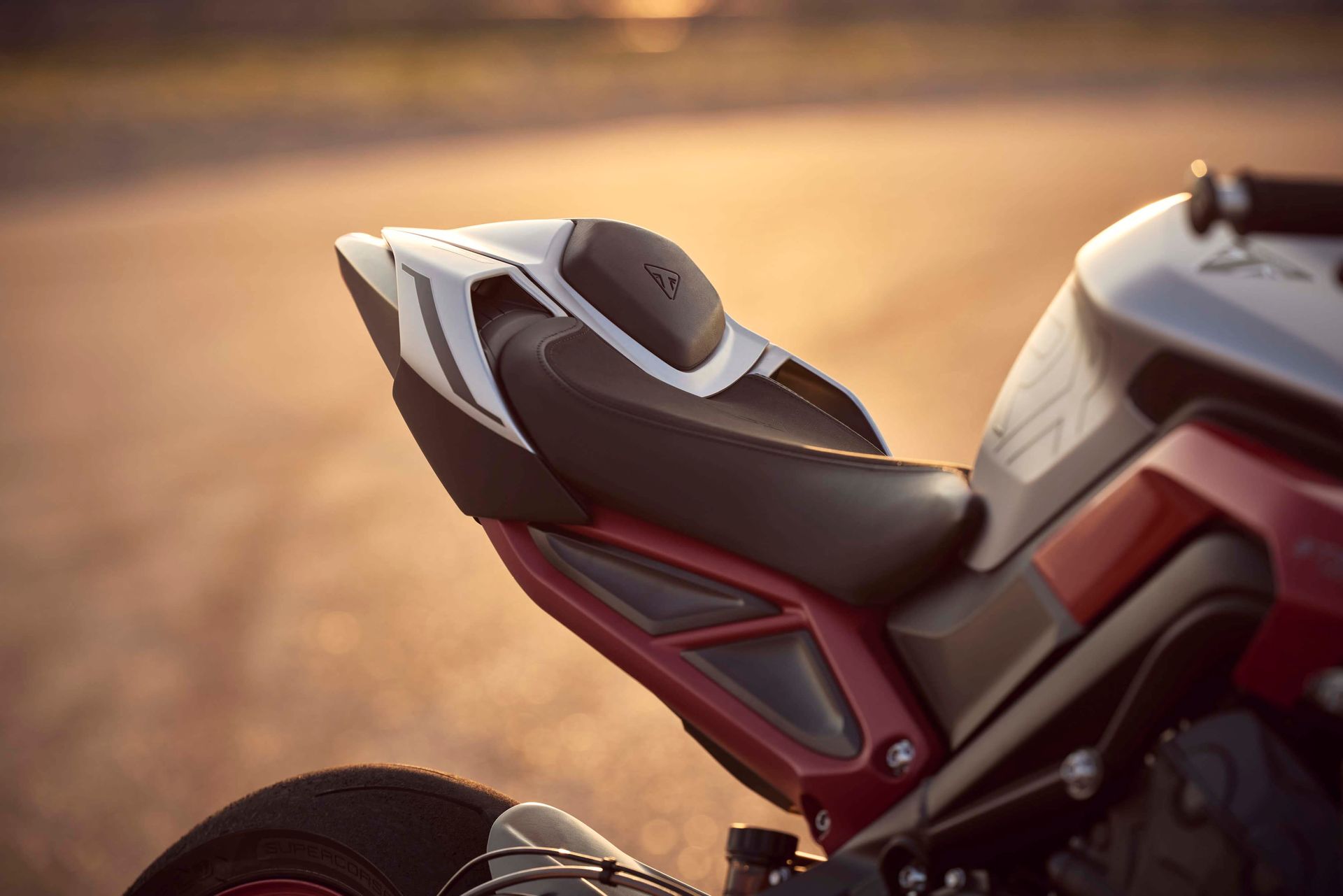

Clip-on handlebars place the rider further forward, providing a focused poise and dynamic ride. The seat vinyl, embossed with the RX logo offers optimal grip for the rider during aggressive cornering.

ULTIMATE AGILITY AND PRECISION

A lightweight aluminium frame and optimised geometry offer precision handling and predictability. The lightweight wheels offer great agility and control finished in Diablo Red for an unmistakable RX look.

RACE READY COMPONENTS

Finished with high level Brembo Stylema Monoblock Calipers, with Optimised Cornering ABS offers powerful braking performance. Brembo MCS span and ratio adjustable lever gives even more control and finesse at the lever.

TRACK READY TYRES

High performance Pirelli Diablo Supercorsa SP V3 tyres come fitted as standard and offer racetrack levels of grip and outstanding high-speed stability, all from a fully road legal tyre.

TRACK FOCUSED ABS MODE

A track specific ABS calibration offers minimal ABS intervention for riders seeking ultimate track performance.

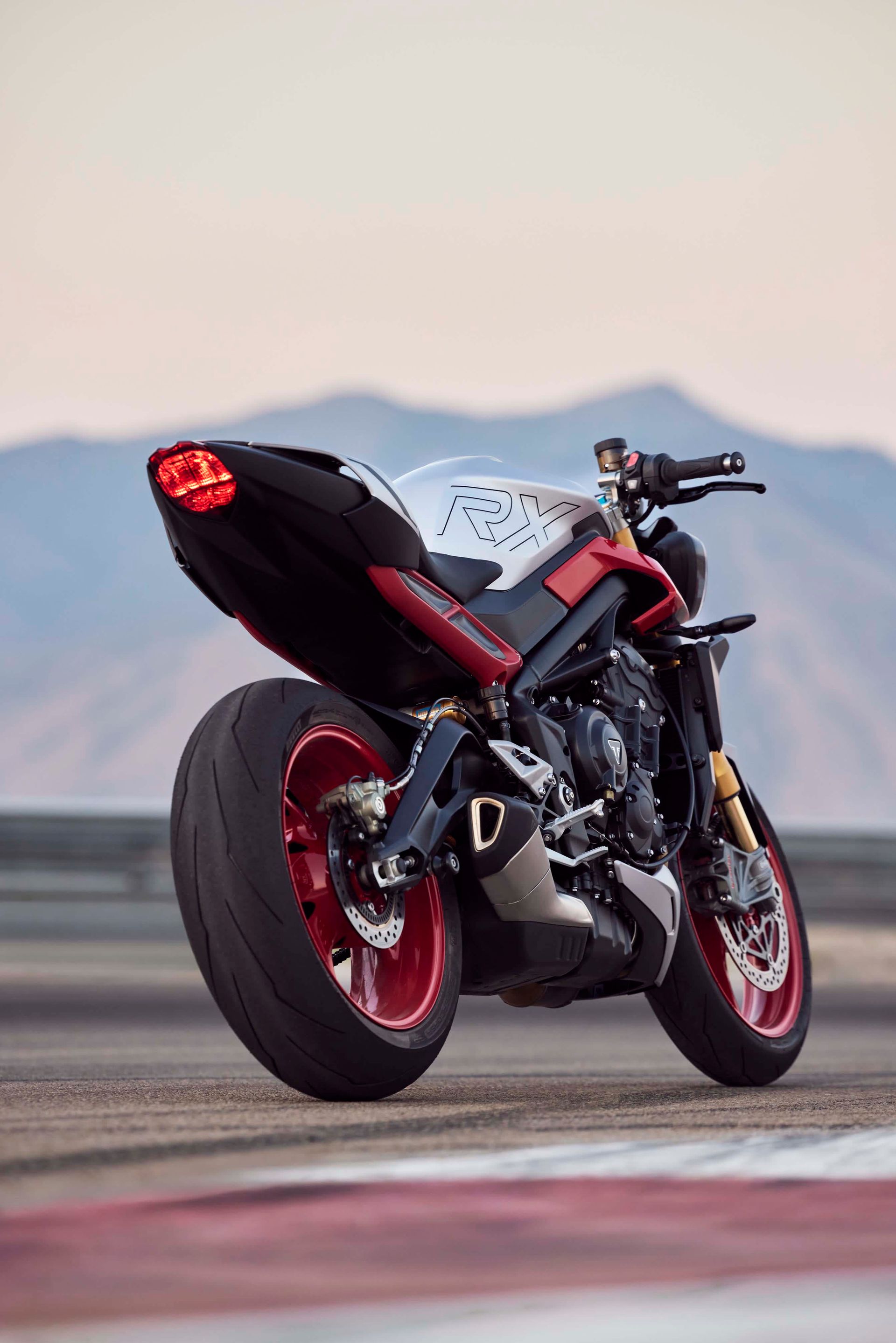

ICONIC STREET TRIPLE DESIGN

The signature Street Triple design gets the RX treatment, with a striking livery and even more attitude.

The iconic Street Triple design is finished in a striking RX livery, with a clean matt aluminium base with bold diablo red components.

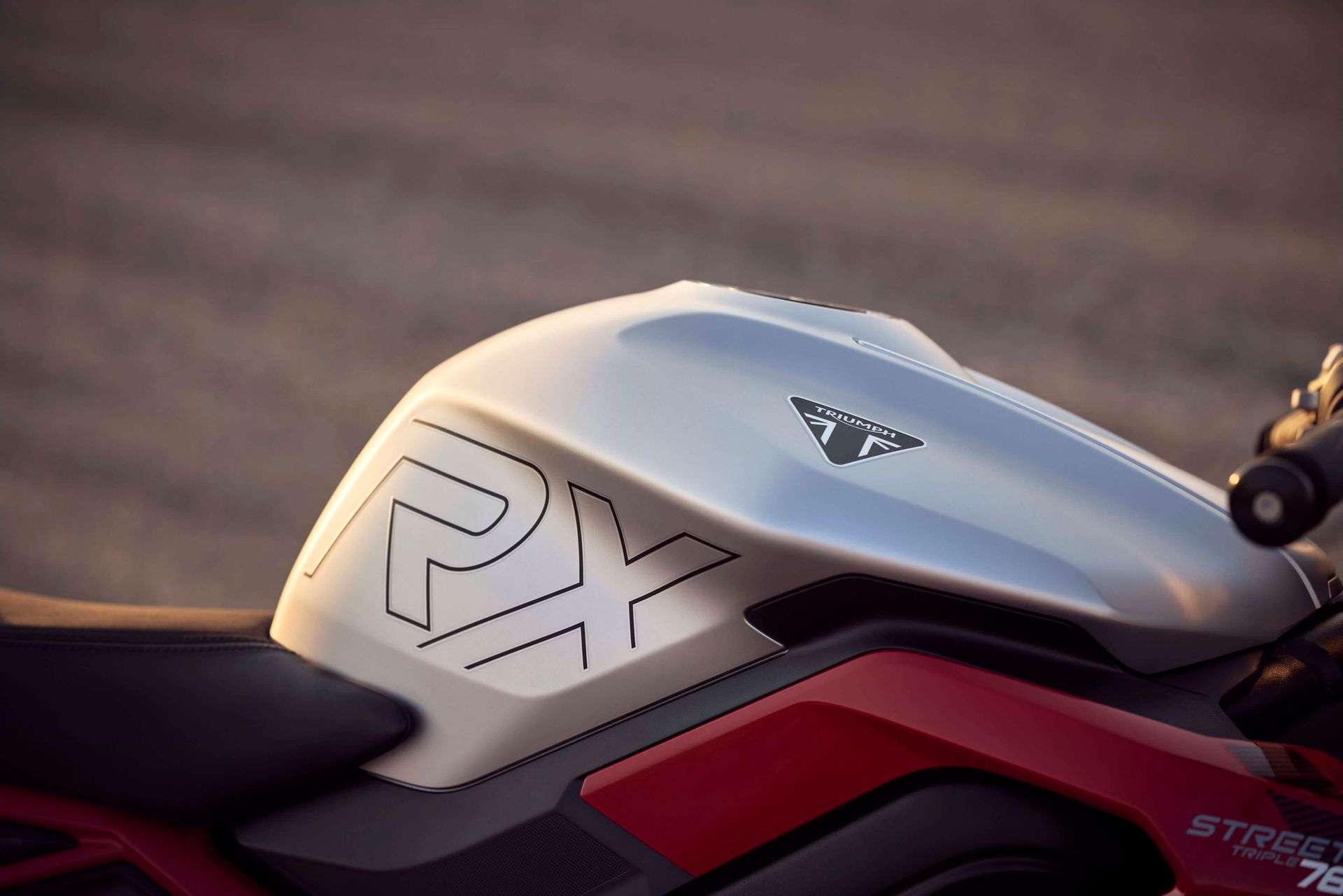

The tank features the signature RX logo while the side panel proudly wears a distinctive X, a scheme that pays homage to the original Street Triple 765 RX.

SIGNATURE STREET TRIPLE DESIGN

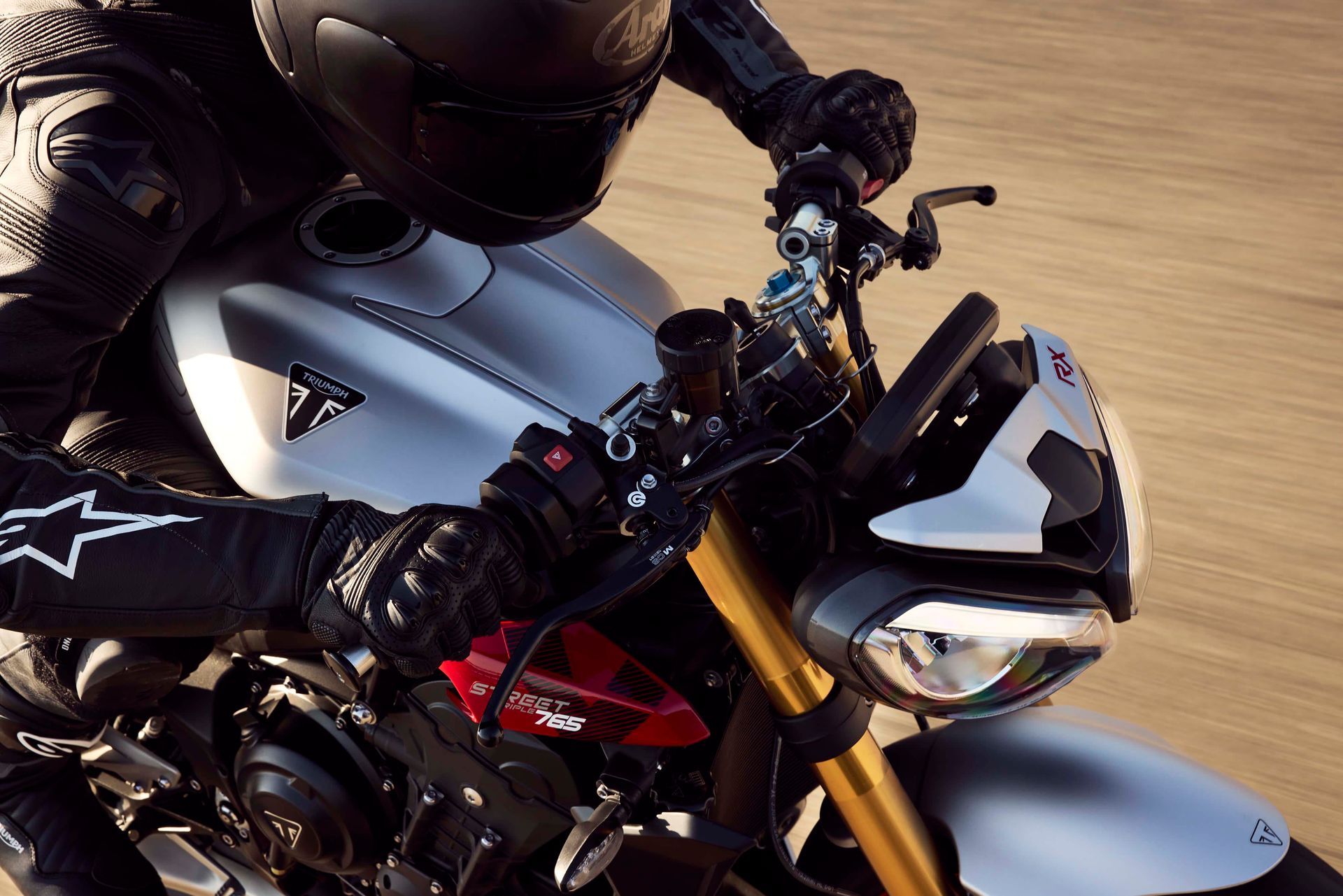

Unmistakably Street Triple, from the focused pose to the distinctive twin headlight signature with Day Time Running light*.

The sharp lines and Street Triple design are complimented by the belly pan, completing the clean look.

*Market dependant

Sharp bodywork and aggressive lines. The aggressive nose down focused pose is complimented by the striking scheme, enhancing the RX's presence.

CLASS LEADING FINISH AND ATTENTION TO DETAIL

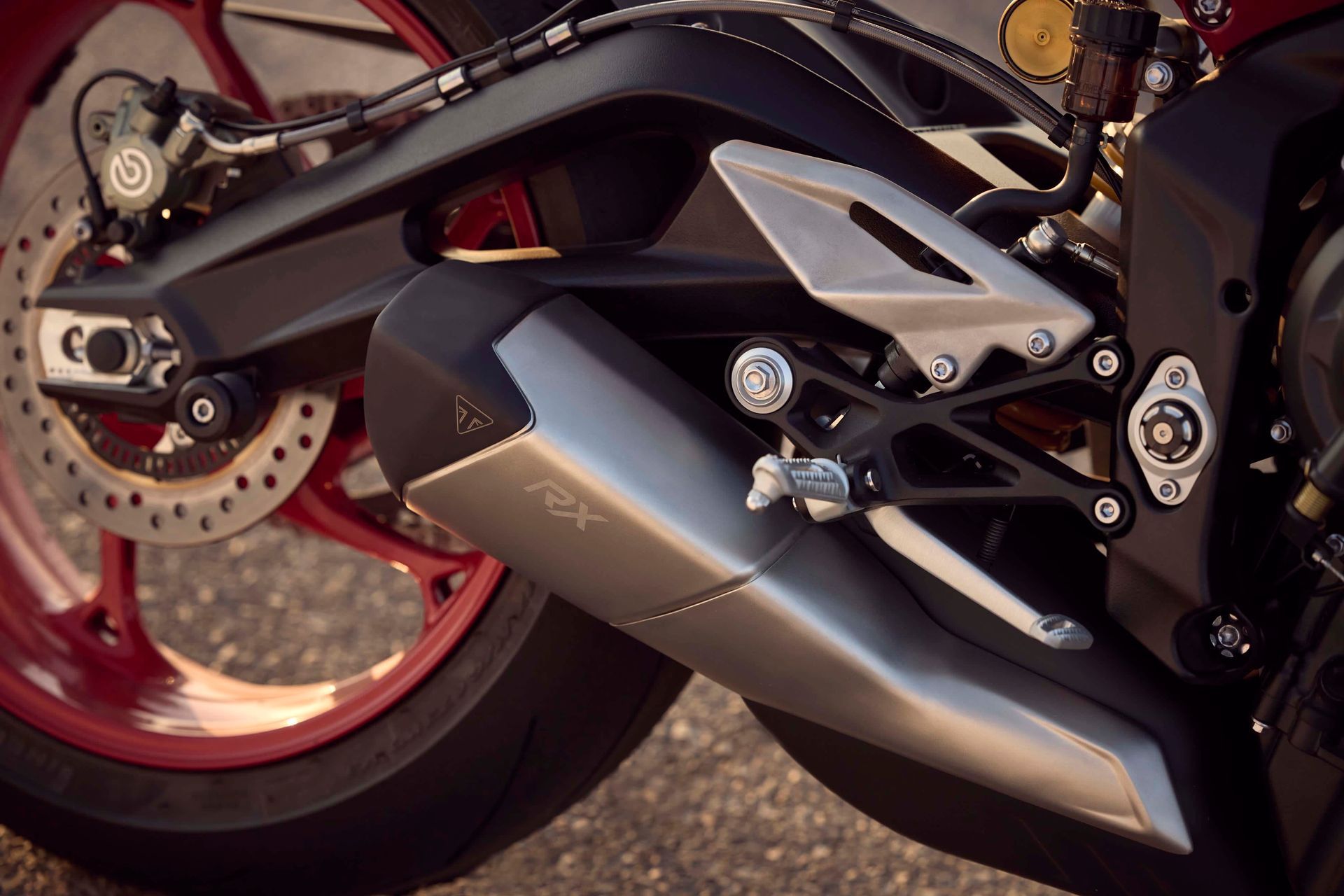

A billet-machined top yoke prominently displays the RX logo to the rider. The RX branding is prominent across the bike, laser-etched onto the silencer and embossed onto the seat. The RX has the class-leading finish and attention to detail that Triumph is famous for.
