TECH SPECS
Adventure for your Soul
ENGINE & TRANSMISSION
Type
Liquid-cooled, inline 3-cylinder, 12 valve, DOHC
Capacity
888 cc
Bore
78 mm
Stroke
61.9 mm
Compression
13.0:1
Max power
108 PS / 106.5 bhp (79.5 kW) @ 9,500 rpm
Max Torque
90 Nm @ 6,850 rpm
System
Multipoint, sequential electronic fuel injection with electronic throttle control
Exhaust
Stainless steel 3 into 1 header system with side mounted stainless steel silencer
Final drive
O-Ring Chain
Clutch
Wet, multi-plate, slip and assist
Gearbox
6 Speed
CHASSIS
Frame
Tubular trellis main frame, steel. Fabricated, bolt-on aluminium rear subframe.
Swingarm
Twin-sided, cast aluminium
Front wheel
Cast aluminium, 19 x 2.5 in
Rear wheel
Cast aluminium, 17 x 4.25 in
Front tyre
Metzeler TouranceTM Next, 100/90-19
Rear tyre
Metzeler TouranceTM Next, 150/70 R17
Front suspension
Marzocchi 45 mm upside-down forks, manual rebound and compression damping adjustment. 180 mm wheel travel
Rear suspension
Marzocchi (RSU), electronically adjustable preload and rebound damping. 170 mm wheel travel
Front brakes
Twin 320 mm floating discs, Brembo Stylema 4-piston Monobloc calipers. Radial front master cylinder, OCABS
Rear brakes
Single, 255 mm disc, single-piston sliding caliper, OCABS
Instruments
Full-colour 7” TFT instrument pack with My Triumph Connectivity System
DIMENSIONS & WEIGHTS
Width
930 mm
Height
1410 mm
Seat height
820 mm
Wheel base
1556 mm
Rake
24.6 °
Trail
102.7 mm
Wet weight
224 kg
Fuel capacity
20 l
FUEL CONSUMPTION
Mileage
60.4 mpg
Fuel consumption
4.7 l/100km
CO2 Figures
g/km
Co2 standard
Euro 5+
Standard description
CO2 emissions and fuel consumption data are measured according to regulation 168/2013/EC. Figures for fuel consumption are derived from specific test conditions and are for comparative purposes only. They may not reflect real driving results.
T-PLANE TRIPLE ENGINE
The Tiger 900 Alpine Edition is powered by Triumph’s 888cc T-Plane Triple engine, producing 108PS at 9,500 rpm and 90Nm of torque at 6,850 rpm.
Its 1-3-2 firing order delivers a distinctive connection at low rpm and strong, responsive performance across the rev range.
AKRAPOVIČ SILENCER
A lightweight Akrapovič silencer, fitted as standard, features a lightweight, high-grade titanium outer sleeve, and a carbon-fibre end cap. reduces mass and produces a clear triple exhaust tone.
TRIUMPH SHIFT ASSIST
Triumph Shift Assist ensures seamless, clutchless up and down shifting, reducing rider fatigue on long adventures.
ALL DAY COMFORT
An adjustable seat height from 820mm to 840mm, natural ergonomics and a damped handlebar mounting system reduce rider fatigue. Combined with the Tiger 900’s, neutral handling, big mileage days have never been so easy.
MARZOCCHI SUSPENSION
Marzocchi 45mm upside down forks provides 180mm of travel and are manually adjustable for rebound and compression damping.
The electronically adjustable Marzocchi rear suspension unit delivers 170mm of travel and can be set up for solo, pillion, or fully-loaded touring weight at the touch of a button.
ENGINE PROTECTION
A factory-fitted engine protection bar and adjustable screen deliver enhanced durability and practicality for adventures in conditions.
RIDER PROTECTION
An adjustable screen and handguards protect the rider from the elements, while standard fit heated grips offer warmth on colder days.
BRAKING
Brembo Stylema Monobloc calipers and 320mm discs provide powerful stopping power and lever feel. Optimised cornering ABS offers a layer of safety and enhanced rider confidence in any condition.
WHEELS AND TYRES
Lightweight cast aluminium wheels, with a 19” front a 17” rear wheel with Metzeler Tourance™ Next tyres provide optimum grip and intuitive road handling.
TANK
Designed for the perfect riding position and leg comfort, the fuel tank’s big adventure ergonomics are matched by its generous, long-range 20-litre capacity.
5 RIDING MODES
Five riding modes – Road, Rain, Sport, Off-Road, and Rider Configurable – tailor throttle, traction, and braking to surface and preference.
CONNECTIVITY
My Triumph Connectivity keeps you informed and in control, with music, phone and turn-by-turn navigation accessed via intuitive 7” TFT display.
RIDER AIDS
Enhanced braking, Optimised Cornering ABS and Traction Control, Cruise Control, Tyre Pressure Monitoring System (TPMS), emergency deceleration warning lights and high-visibility marker lights enhance safety and rider confidence.
ADAPTIVE LIGHTING
Powerful, maintenance free, all-LED lighting with a signature daytime running light* and marker lights enhances visibility for both the rider and other road users.
*Market Dependant

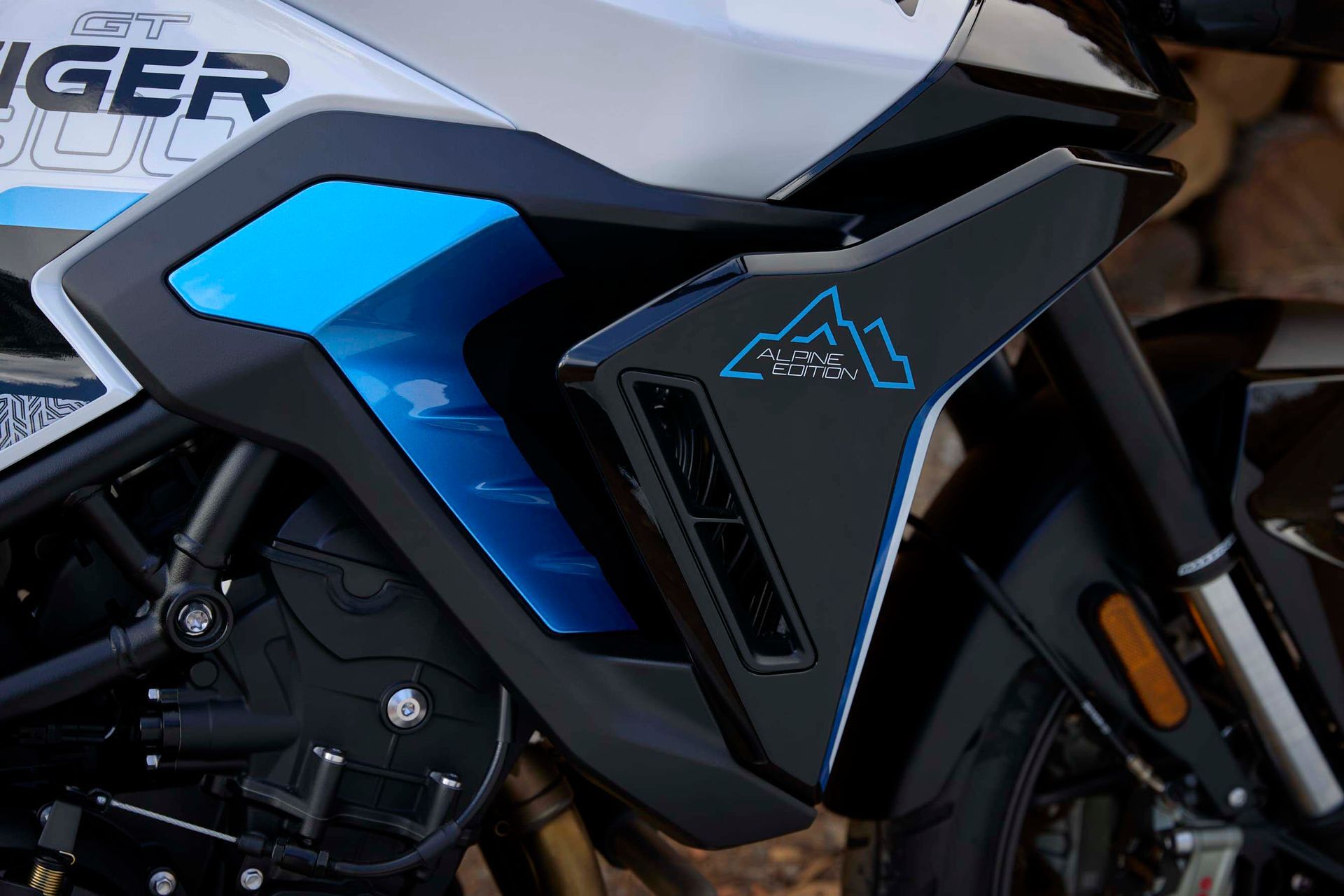

ALPINE INSPIRED SCHEME
The Tiger 900 Alpine Edition is finished in Snowdonia White and Sapphire Black with Aegean Blue detailing and dedicated Alpine Edition graphics.
TIGER ATTITUDE
Sharp design and Tiger attitude, enhanced by the Akrapovič silencer and engine protection bars, the Alpine Edition offers a clean road-focussed style that is unmistakably Tiger.
FINISH & DETAIL
The Tiger 900 Alpine Edition is finished in a deep paint, high quality materials and a meticulous attention to detail.
With a high level of standard fit equipment, the Alpine Edition is adventure ready.
