TECH SPECS
Adventure for your Soul
ENGINE & TRANSMISSION
Type
Liquid-cooled, inline 3-cylinder, 12 valve, DOHC
Capacity
888 cc
Bore
78 mm
Stroke
61.9 mm
Compression
13.0:1
Max power
108 PS / 106.5 bhp (79.5 kW) @ 9,500 rpm
Max Torque
90 Nm @ 6,850 rpm
System
Multipoint, sequential electronic fuel injection with electronic throttle control
Exhaust
Stainless steel 3 into 1 header system with side mounted stainless steel silencer
Final drive
O-Ring Chain
Clutch
Wet, multi-plate, slip and assist
Gearbox
6 Speed
CHASSIS
Frame
Tubular trellis main frame, steel. Fabricated, bolt-on aluminium rear subframe.
Swingarm
Twin-sided, cast aluminium
Front wheel
Spoked tubeless, 21 x 2.15 in
Rear wheel
Spoked tubeless, 17 x 4.25 in
Front tyre
Bridgestone Battlax Adventure 90/90-21
Rear tyre
Bridgestone Battlax Adventure 150/70 R17
Front suspension
Showa 45 mm upside-down forks, manual preload, rebound and compression damping adjustment, 240 mm wheel travel
Rear suspension
Showa (RSU), manually adjustable preload and rebound damping. 230 mm wheel travel
Front brakes
Twin 320 mm floating discs, Brembo Stylema 4-piston Monobloc calipers. Radial front master cylinder, OCABS
Rear brakes
Single, 255 mm disc, single-piston sliding caliper, OCABS
Instruments
Full-colour 7” TFT instrument pack with My Triumph Connectivity System
DIMENSIONS & WEIGHTS
Width
935 mm
Height
1452 mm
Seat height
860 mm
Wheel base
1551 mm
Rake
24.4 °
Trail
116.8 mm
Wet weight
231 kg
Fuel capacity
20 l
FUEL CONSUMPTION
Mileage
60.4 mpg
Fuel consumption
4.7 l/100km
CO2 Figures
g/km
Co2 standard
Euro 5+
Standard description
CO2 emissions and fuel consumption data are measured according to regulation 168/2013/EC. Figures for fuel consumption are derived from specific test conditions and are for comparative purposes only. They may not reflect real driving results.
T-PLANE TRIPLE ENGINE
The Tiger 900 Desert Edition is powered by Triumph’s 888cc T-Plane Triple engine, producing 108PS at 9,500 rpm and 90Nm of torque at 6,850 rpm.
Its 1-3-2 firing order delivers a distinctive connection at low rpm and strong, responsive performance across the rev range.
AKRAPOVIČ SILENCER
A lightweight Akrapovič silencer, fitted as standard, features a lightweight, high-grade titanium outer sleeve, and a carbon-fibre end cap. reduces mass and produces a clear triple exhaust tone.
TRIUMPH SHIFT ASSIST
Triumph Shift Assist ensures seamless, clutchless up and down shifting, reducing rider fatigue on long adventures.
ALL TERRAIN COMFORT
The Desert Edition is built for versatility and control on mixed terrain. Its frame geometry and equipment package combine off-road strength with touring comfort.
An adjustable seat offers 20mm range from 860mm to 880mm, allowing the rider to dial into their preferences.
LONG-TRAVEL SHOWA SUSPENSION
Fully adjustable Showa 45mm upside down forks provides 240mm of travel at the front and 230mm at the rear, manually adjustable for preload and rebound damping.
The Desert Edition’s suspension can cope with the most extreme off-road action without compromising road capability and comfort.

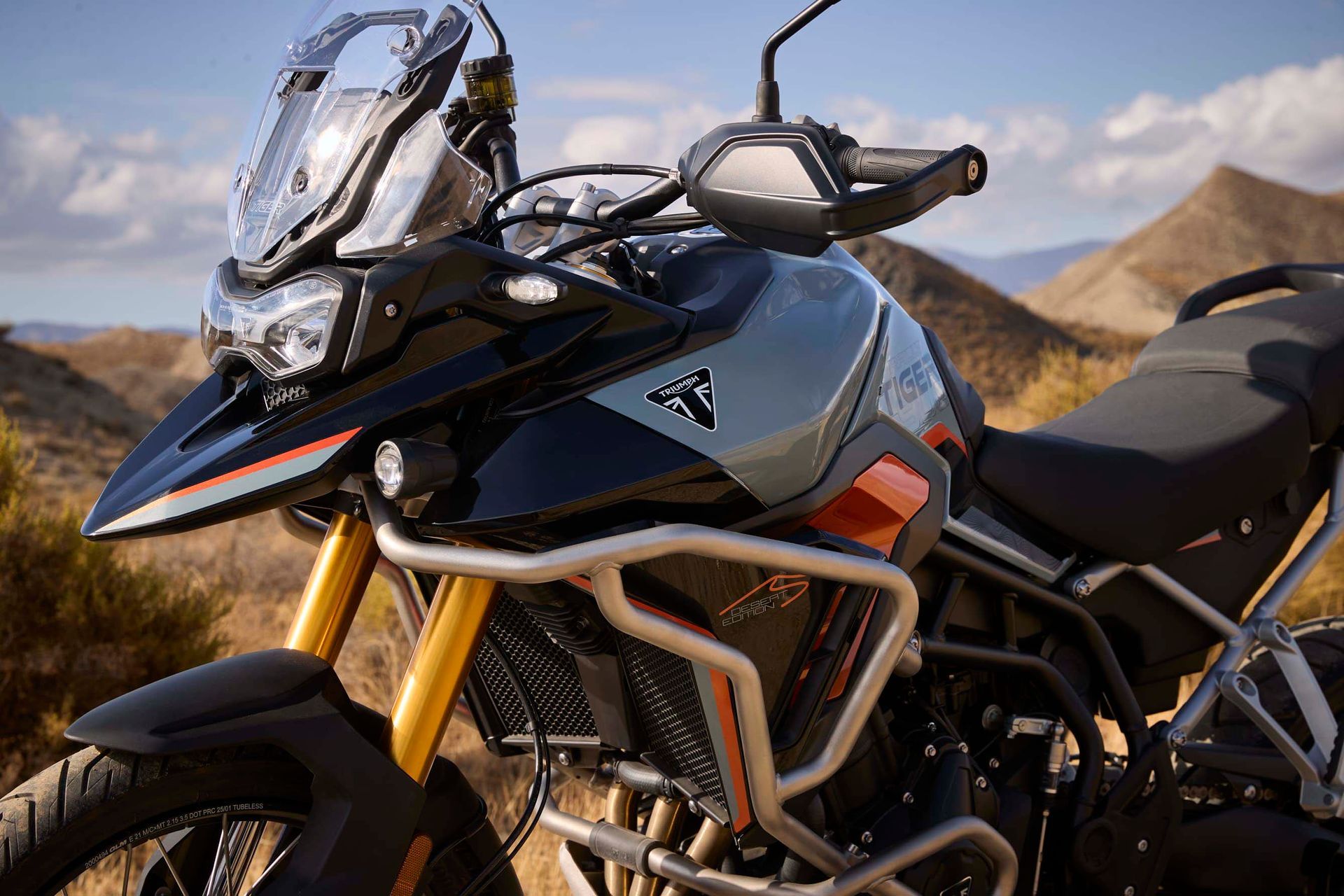

COMPLETE PROTECTION
The Tiger 900 Desert Edition is protected from the hardest of adventures.
The aluminium sump guard, engine and fuel tank protection bars defend against rock strikes and drops, protecting vital components and keeping you adventure ready.
RIDER PROTECTION
An adjustable screen and handguards protect the rider from the elements, while standard fit heated grips offer warmth on colder days.
BRAKING
Brembo Stylema Monobloc calipers and 320mm discs provide powerful stopping power and lever feel. Optimised cornering ABS offers a layer of safety and enhanced rider confidence in any condition.
WHEELS AND TYRES
Tubeless, side-laced spoked wheels are the perfect choice for the Desert Edition. The 21” front brings pure off-road handling and a broad tyre choice with a 17” rear for intuitive road handling.

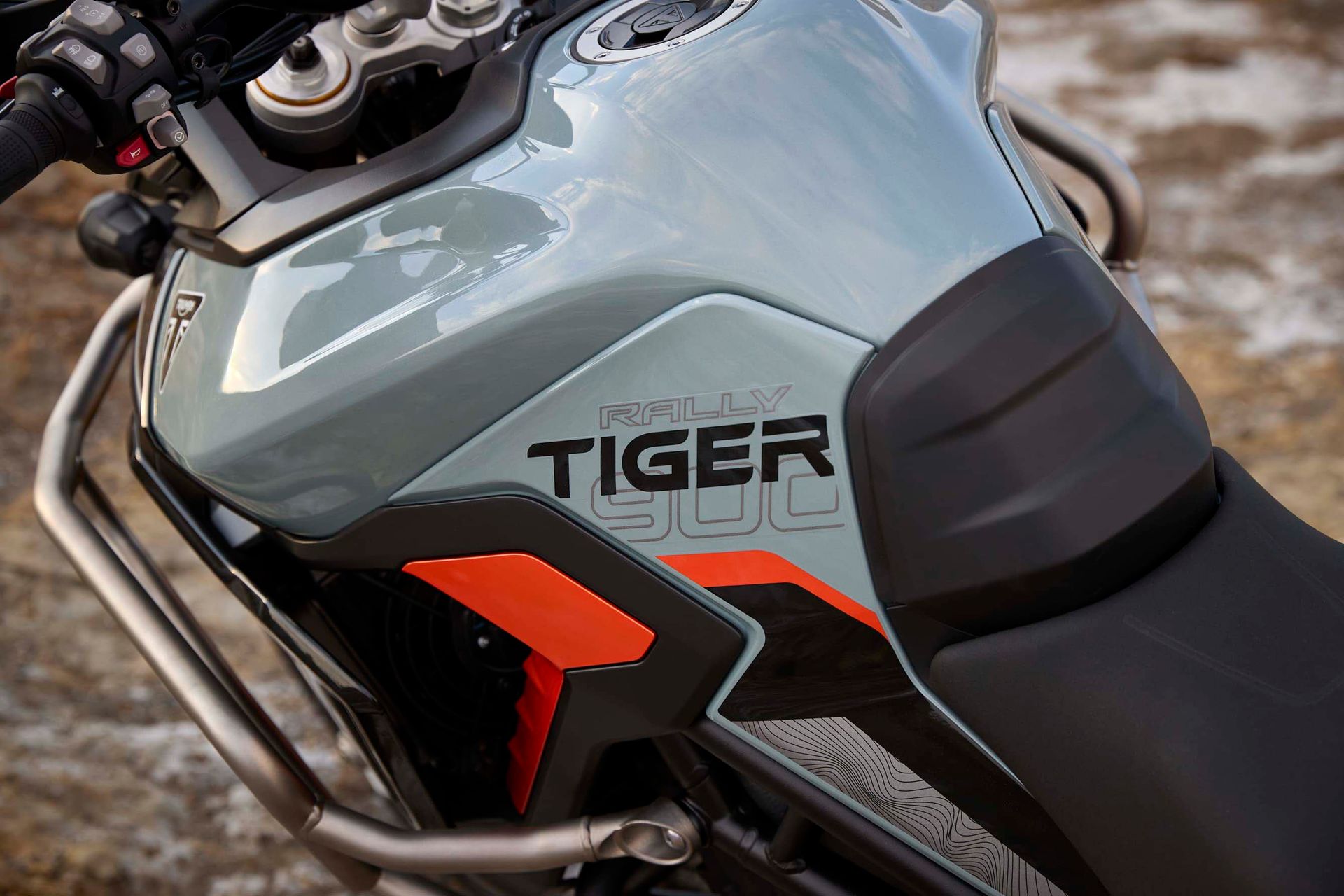

TANK
Designed for the perfect riding position and leg comfort, the fuel tank’s big adventure ergonomics are matched by its generous, long-range 20-litre capacity.
Factory fitted fuel tank protection bars keep the Desert Edition adventure ready.
6 RIDING MODES
Six riding modes – Road, Rain, Sport, Rider Configurable, Off-Road, and Off-Road Pro – adapt power, traction, and braking for total control.
CONNECTIVITY
My Triumph Connectivity keeps you informed and in control, with music, phone and turn-by-turn navigation accessed via intuitive 7” TFT display.
RIDER AIDS
Enhanced braking, Optimised Cornering ABS and Traction Control, Cruise Control, Tyre Pressure Monitoring System (TPMS), emergency deceleration warning lights and high-visibility marker lights enhance safety and rider confidence.
ADAPTIVE LIGHTING
Powerful, maintenance free, all-LED lighting with a signature daytime running light* and marker lights enhances visibility for both the rider and other road users.
*Market Dependant
DESERT INSPIRED SCHEME
The Tiger 900 Desert Edition is finished in Urban Grey and Sapphire Black with Baja Orange accents and Desert Edition graphics.
TIGER ATTITUDE
Sharp design and Tiger attitude, enhanced by the added protection, Akrapovič silencer and, the Desert Edition has strong presence off-road attitude.
FINISH & DETAIL
The Tiger 900 Desert Edition is finished in a deep paint, high quality materials and a meticulous attention to detail.
With a high level of standard fit equipment, the Desert Edition is adventure ready.
