Escape the Ordinary
Thrilling performance and long-distance comfort
SPORTS PERFORMANCE
The pure exhilaration of a Triumph triple.
EFFORTLESS AGILITY
Perfectly balanced and confident through every turn.
THE COMPLETE TOURING MACHINE
All-day comfort, two-up adventures and generous luggage capacity.
RIDER FOCUSED TECHNOLOGY
Intelligent electronics to optimise your ride.

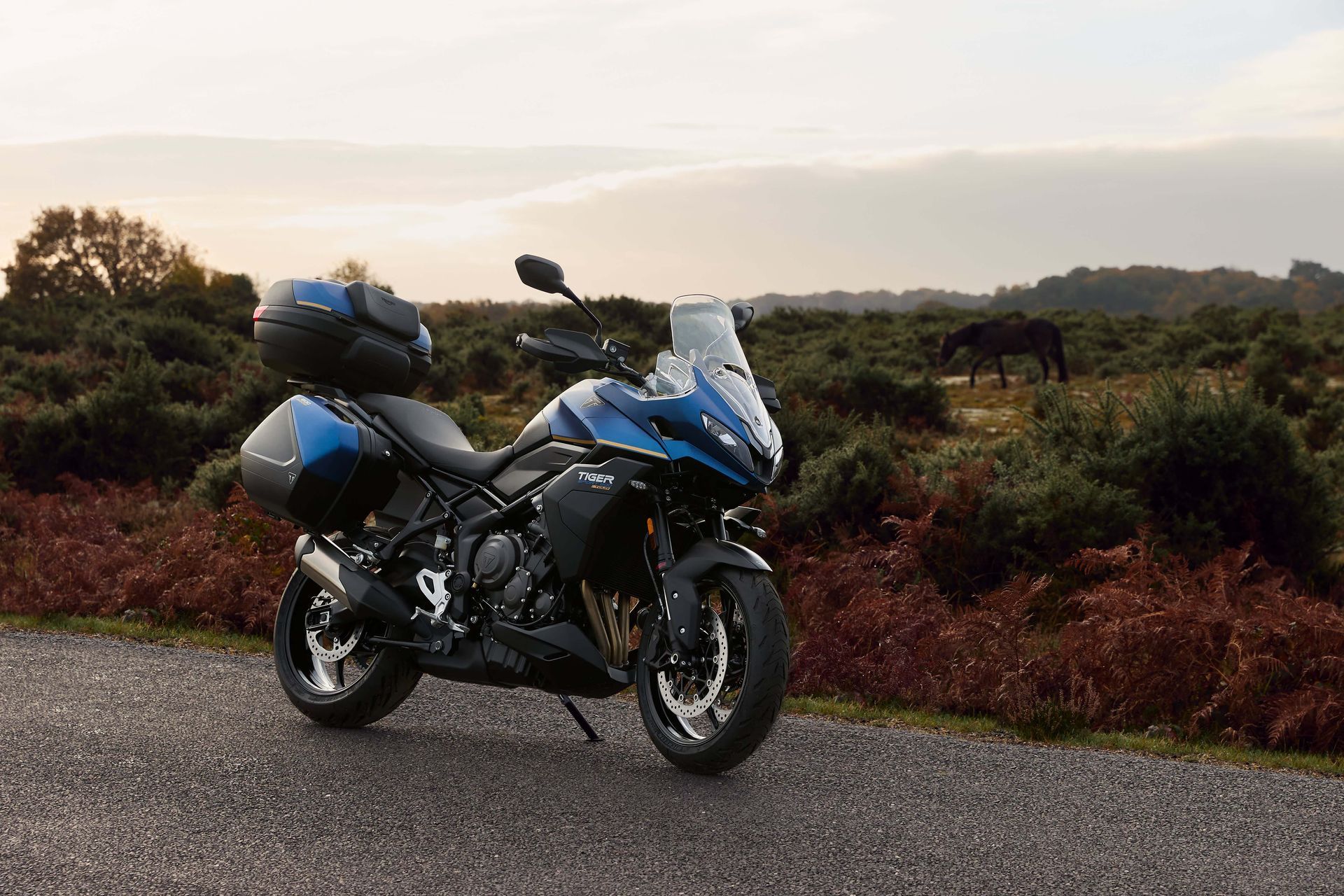

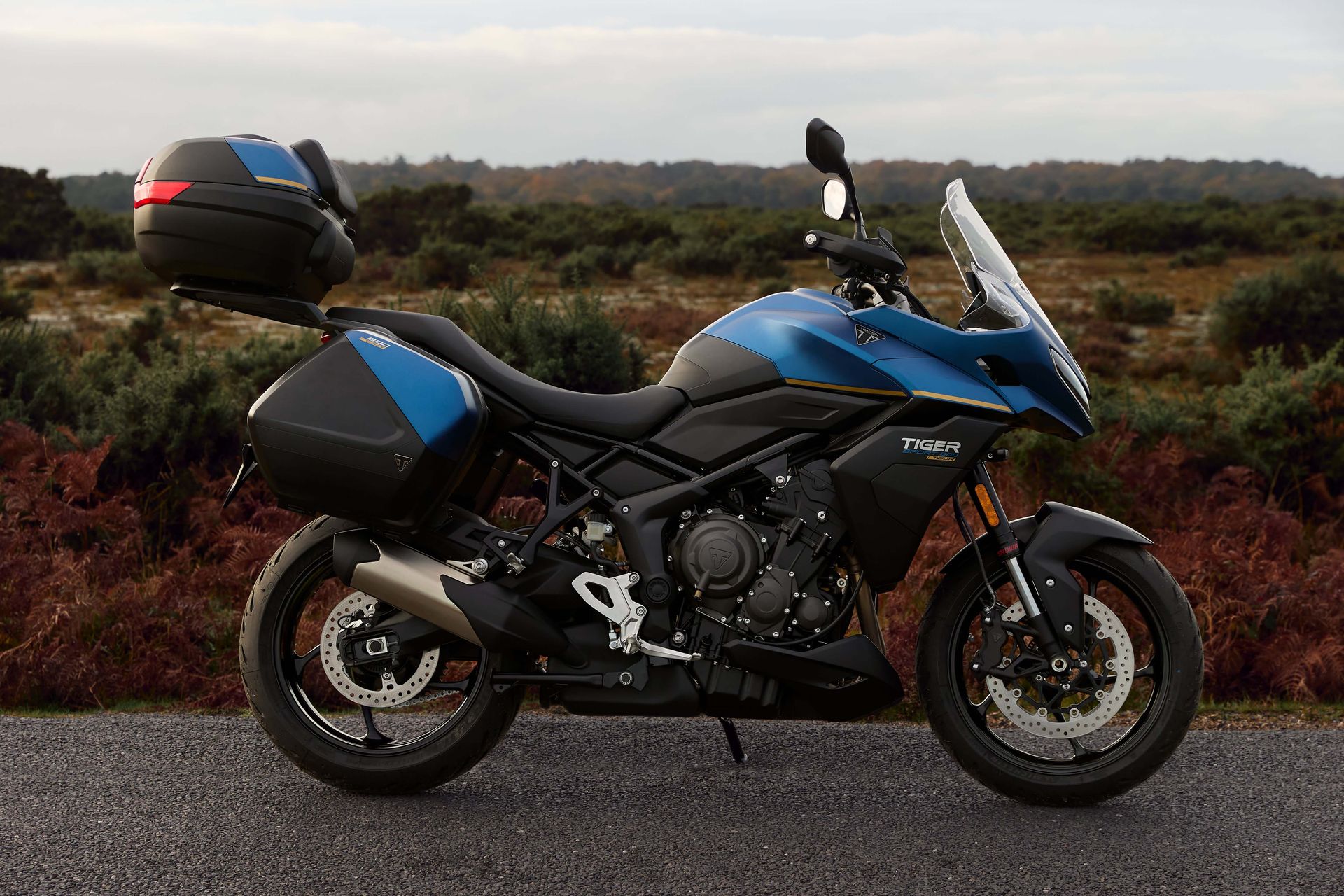

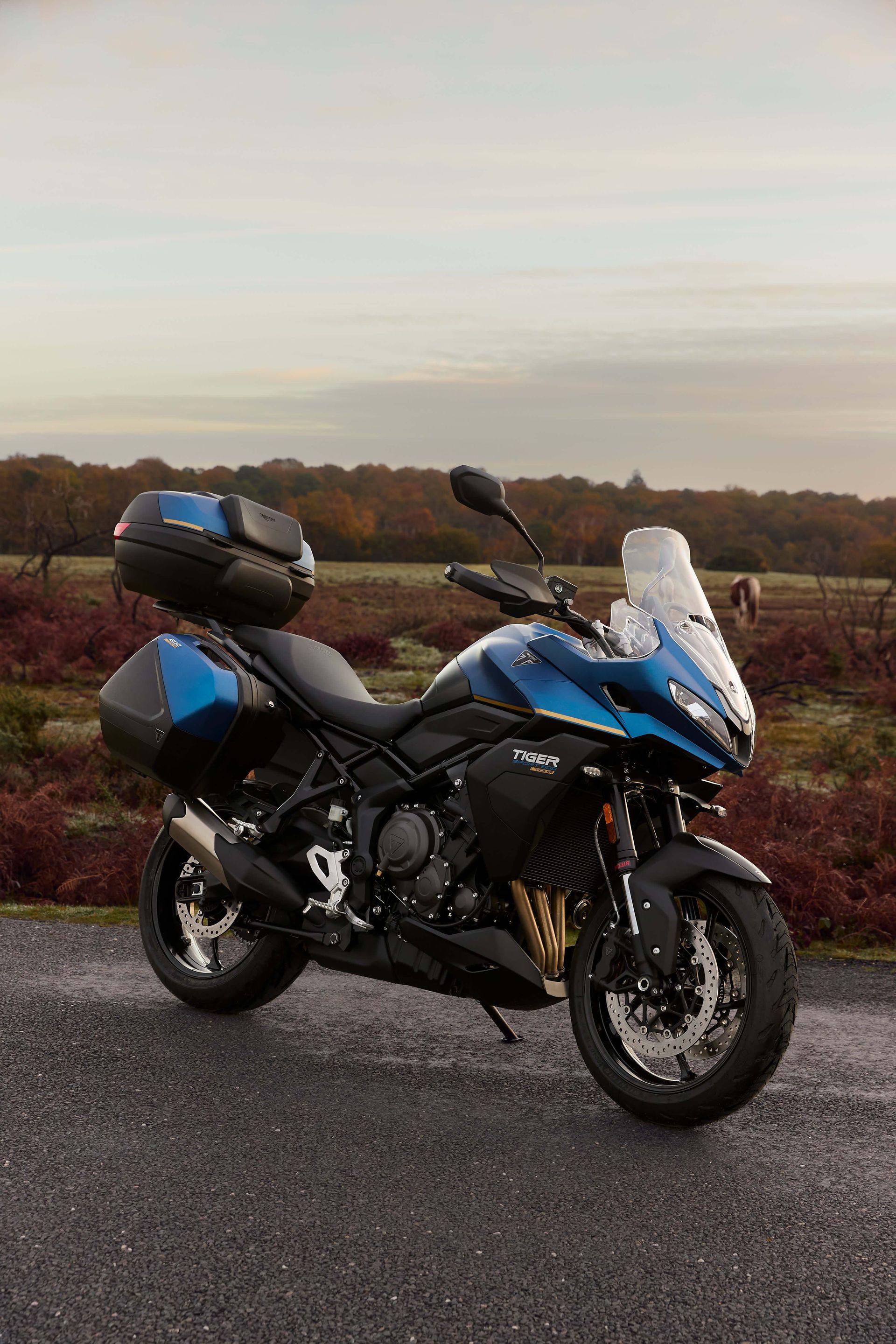

THE COMPLETE TOURING MACHINE
AT HOME ON THE ROAD
A spacious, all-day comfortable riding position with generous pillion accommodation and a dual comfort seat, crafted for sharing epic adventures.

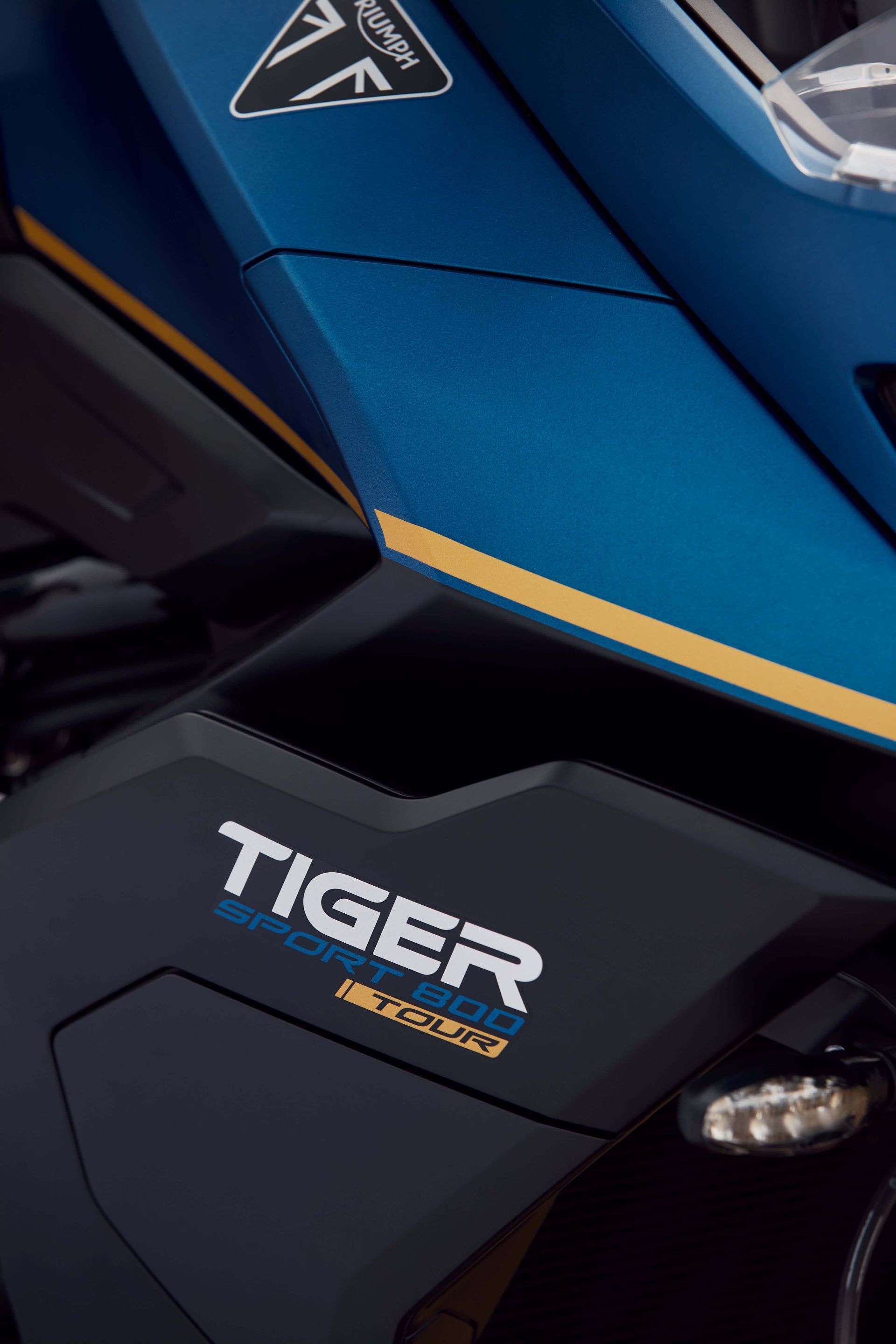

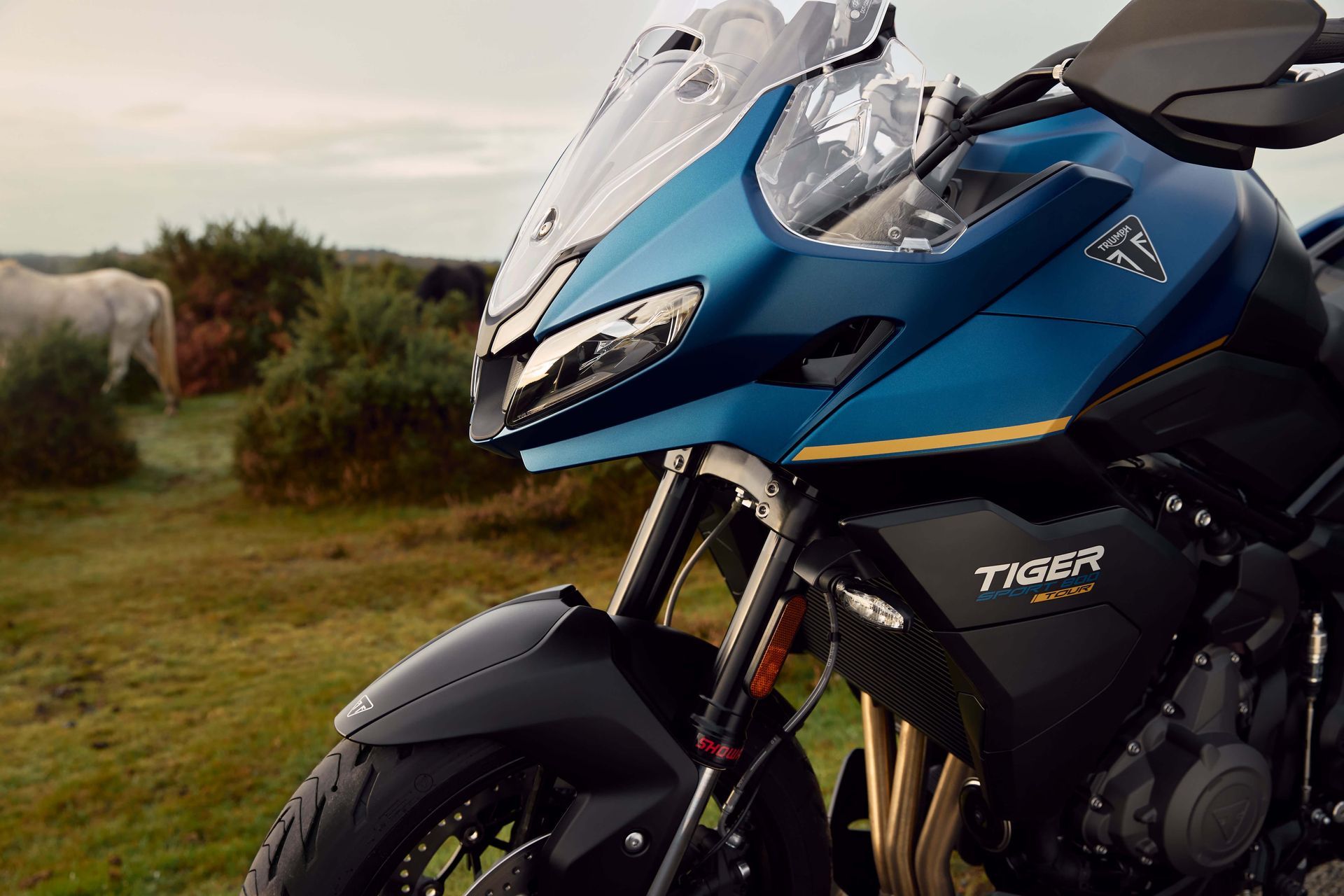

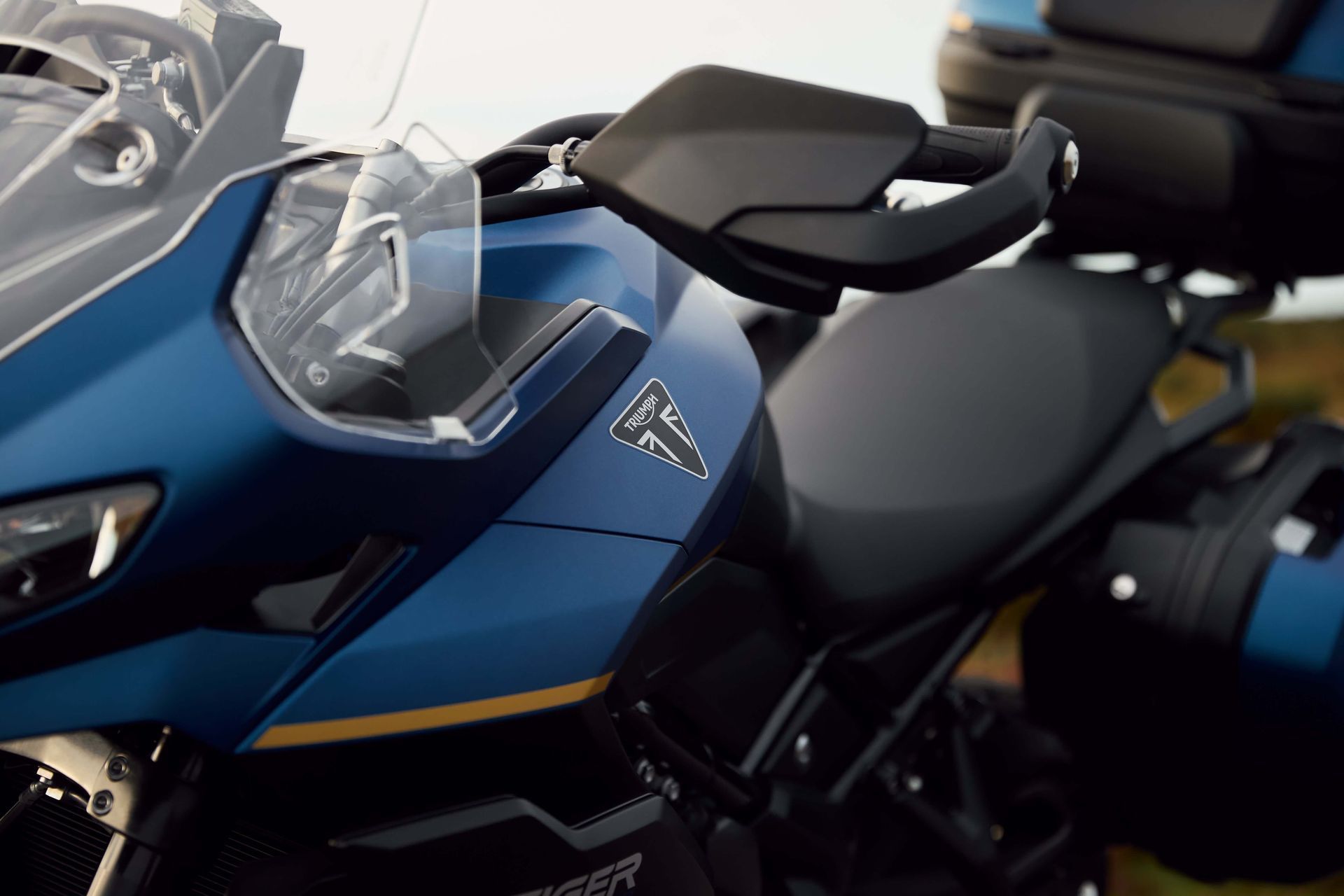

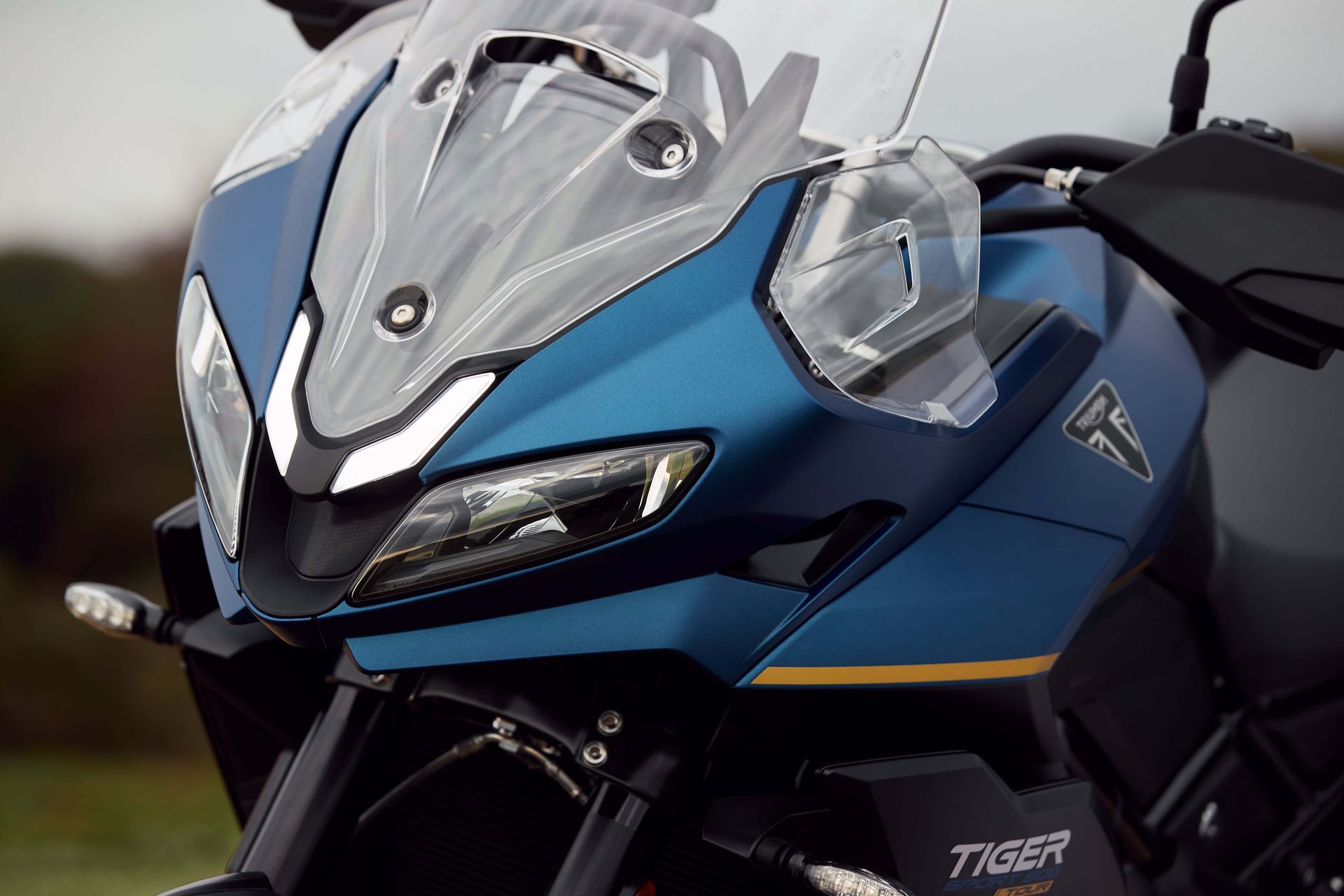

FULLY PROTECTED
Distinctive Tiger Sport bodywork, a large adjustable screen, and wind deflectors work together with protective handguards and heated grips to provide exceptional protection from the elements.
STYLE AND UTILITY
Neatly integrated features combine clean design with practical functionality, including a centre stand for easy chain maintenance.

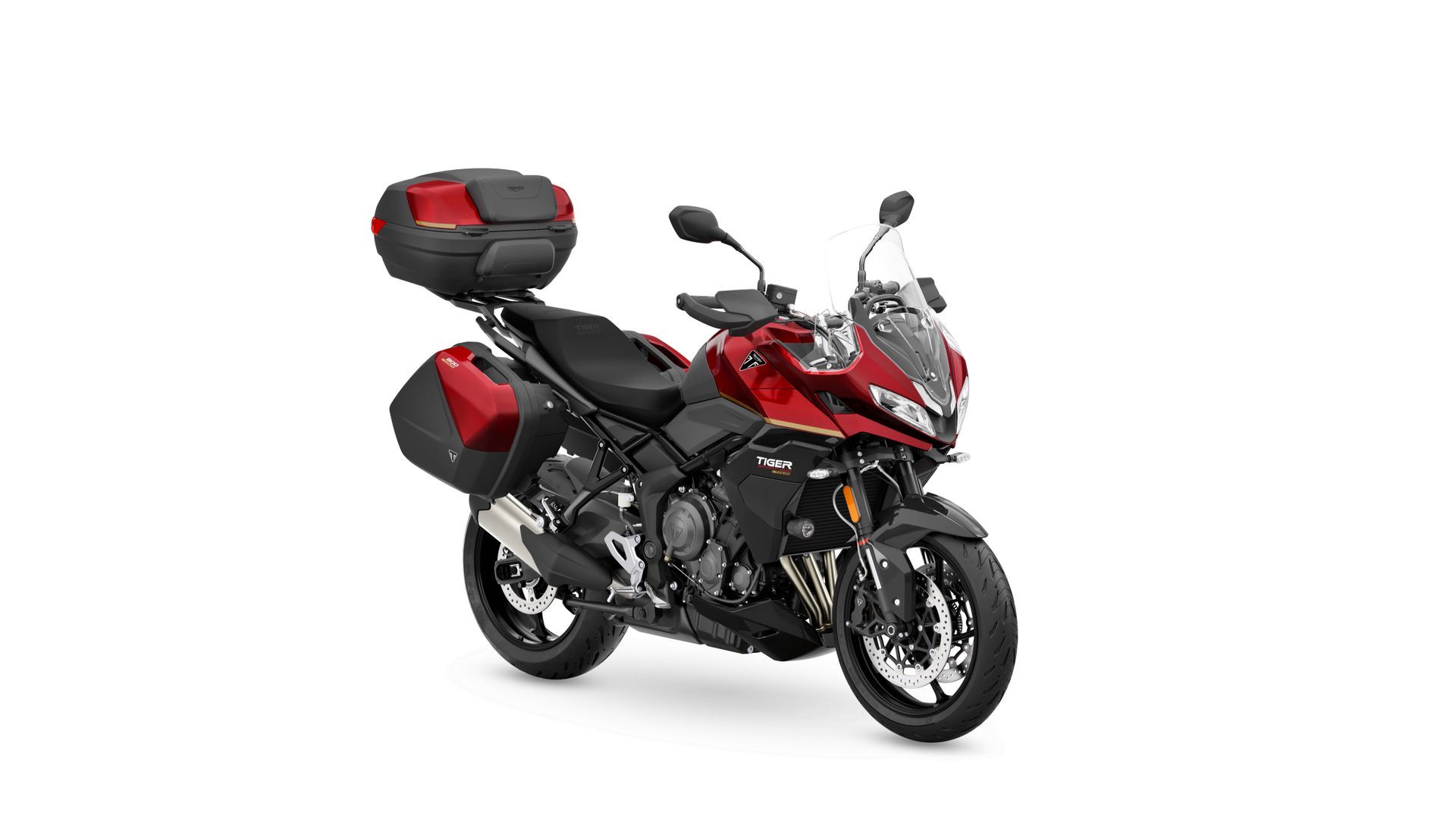

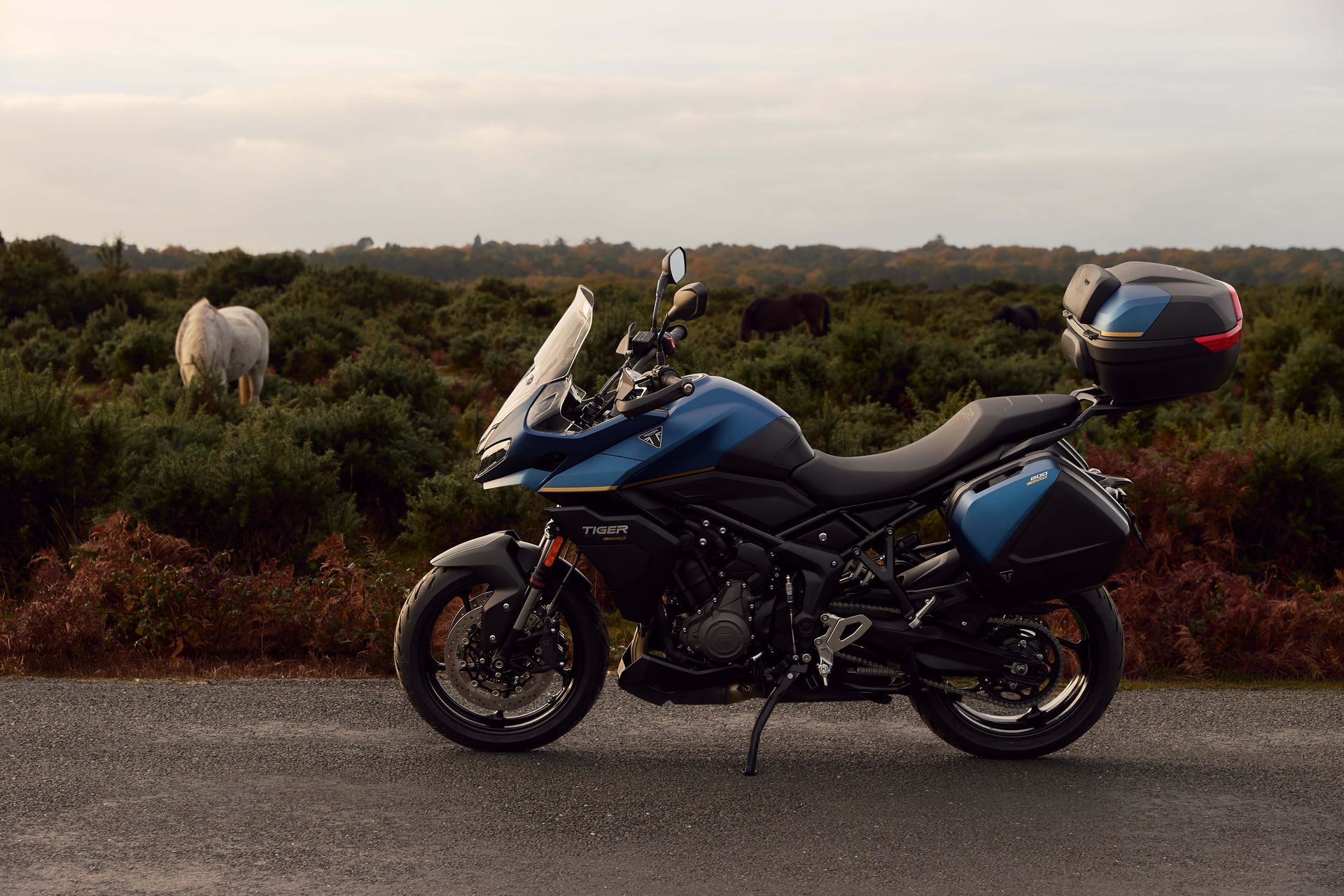

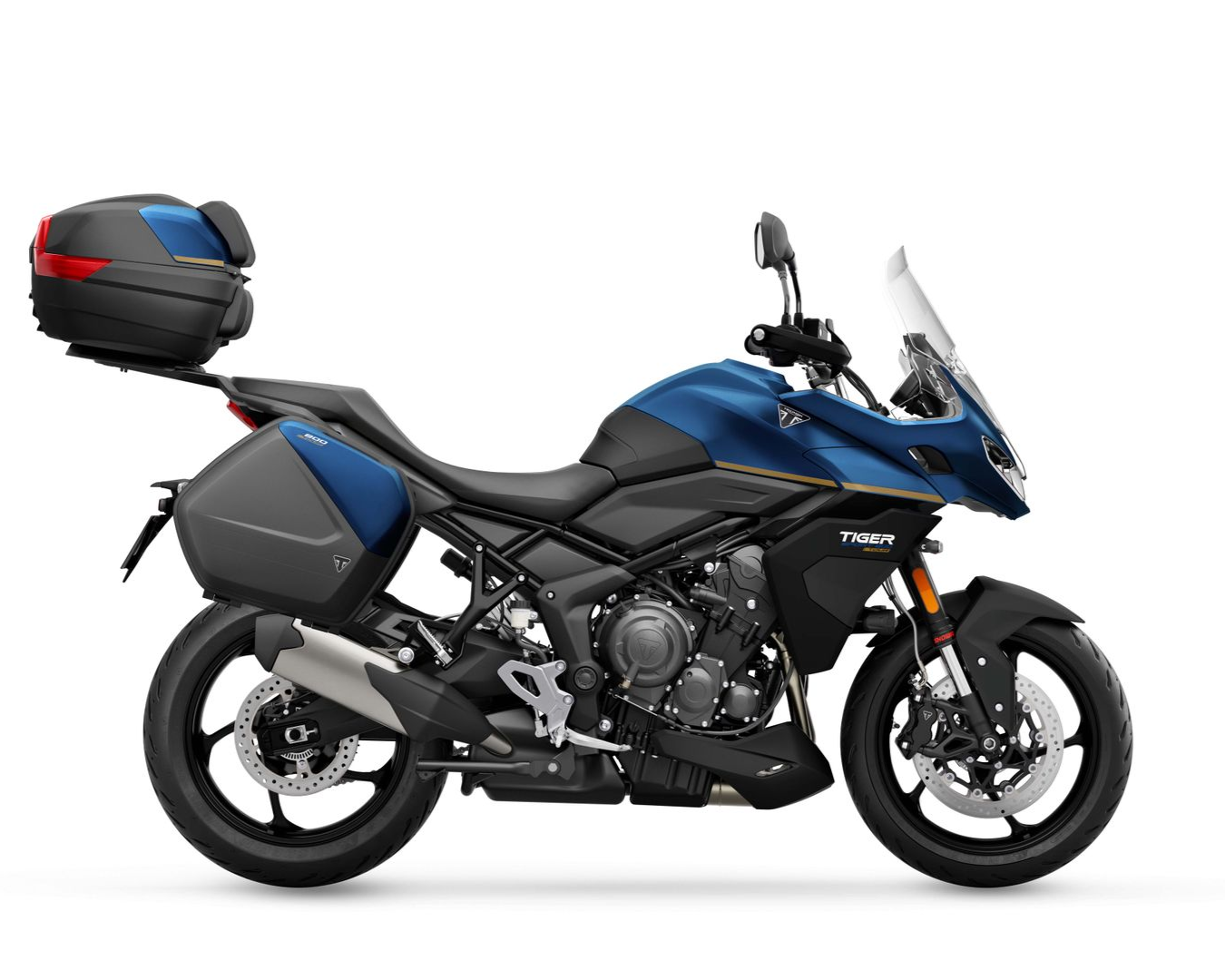

FULLY LOADED

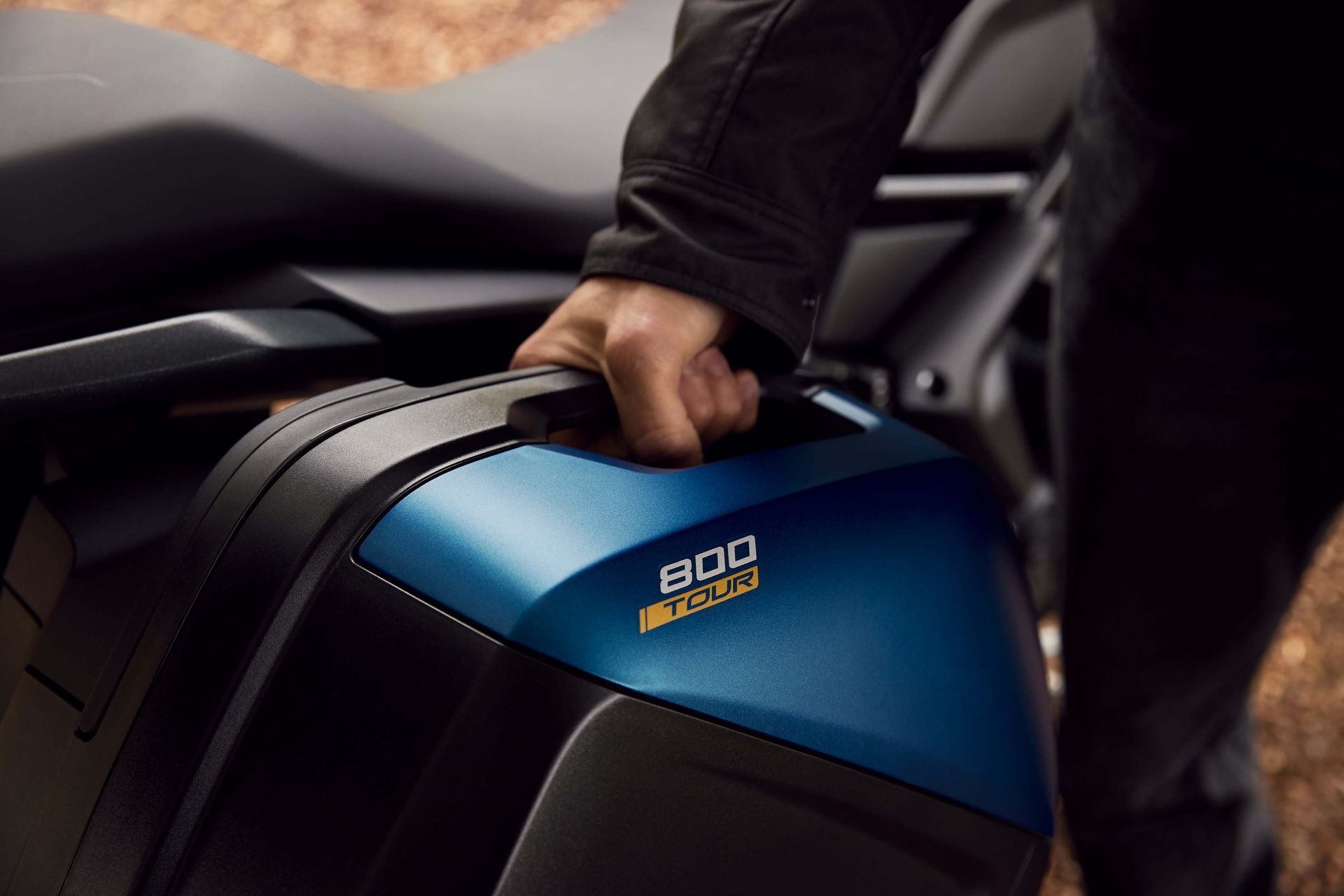

Fully loaded with features for both rider and pillion the Tiger Sport 800 Tour has a large 18.5 litre fuel tank, heated grips, pre-load adjustable RSU and integrated pillion handles. There's also a generous 106-litre luggage capacity, including colour-coded panniers with 57 litres of storage, aluminium luggage racks, and with a 49-litre top box, there’s space for everything from the weekly shop to weekend escapes.
SPECIFICATIONS
ENGINE & TRANSMISSION
Type
Liquid-cooled, inline 3-cylinder, 12 valve, DOHC
Capacity
798 cc
Bore
78 mm
Stroke
55.7 mm
Compression
13.2:1
Max power
115 PS / 113 bhp (84.6 kW) @ 10,750 rpm
Max Torque
84 Nm @ 8,500 rpm
System
Bosch, multipoint sequential electronic fuel injection with electronic throttle control.
Exhaust
Stainless steel 3 into 1 header system with side mounted stainless steel silencer
Final drive
X-ring chain
Clutch
Wet, multi-plate, slip and assist
Gearbox
6 Speed
CHASSIS
Frame
Tubular steel perimeter frame
Swingarm
Twin-sided, fabricated steel
Front wheel
Cast aluminium alloy 5 spoke, 17 x 3.5 in
Rear wheel
Cast aluminium alloy, 5 spoke, 17 x 5.5 in
Front tyre
120/70 R 17
Rear tyre
180/55 R 17
Front suspension
Showa 41 mm, upside-down separate function cartridge forks, adjustable compression and rebound damping, 150 mm wheel travel
Rear suspension
Showa monoshock (RSU), adjustable rebound damping and remote hydraulic preload adjustment, 150 mm wheel travel
Front brakes
Twin, 310 mm Floating discs, 4-piston radial calipers, OCABS
Rear brakes
Single, 255 mm disc, single-piston sliding caliper, OCABS

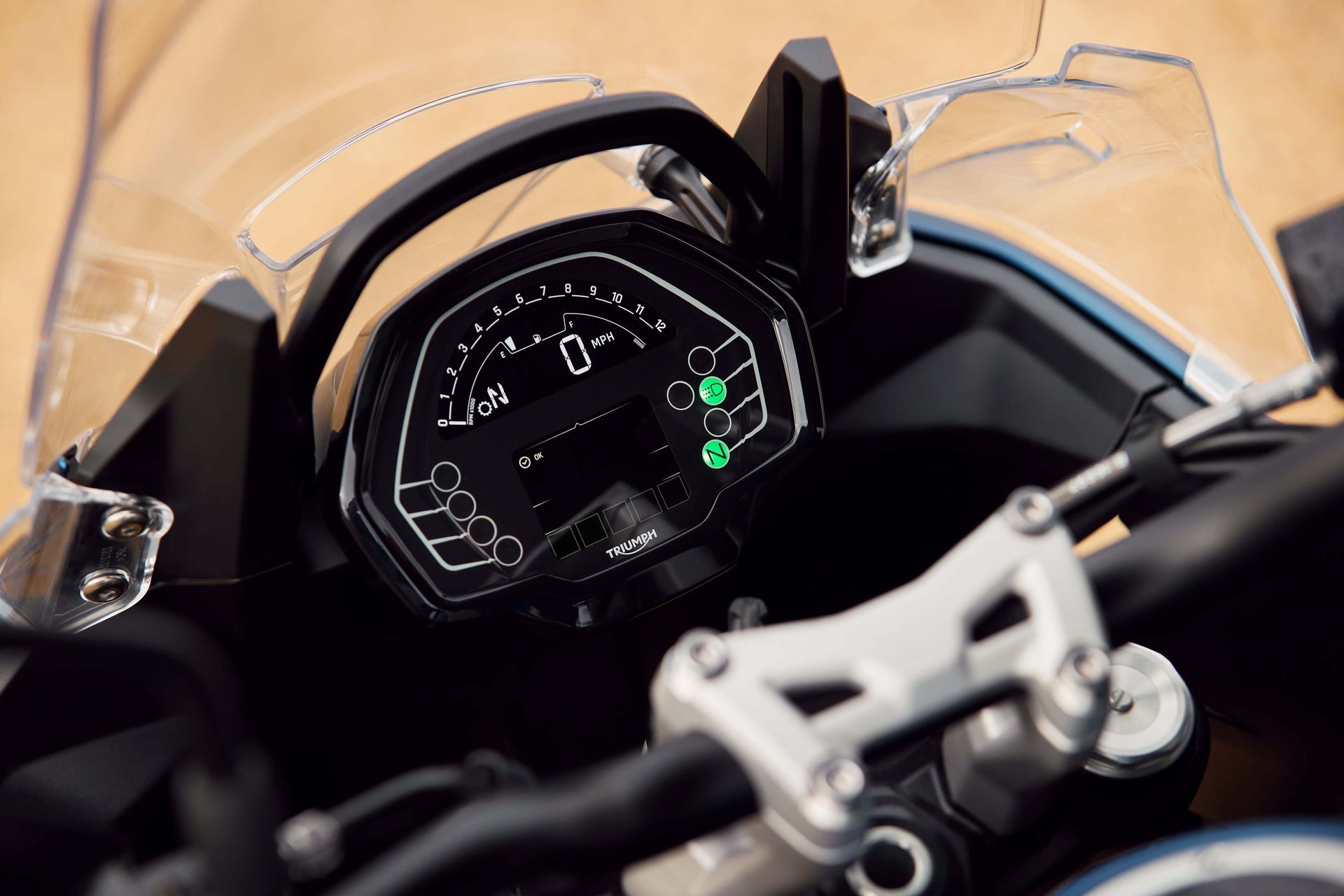

Instruments
LCD multi-function instruments with integrated colour TFT screen
DIMENSIONS & WEIGHTS
Width
915 mm
Height
1386 mm
Seat height
835 mm
Wheel base
1422 mm
Rake
23.8 °
Trail
99 mm
Wet weight
232 kg
Fuel capacity
18.6 l
FUEL CONSUMPTION
Mileage
60.1 mpg
Fuel consumption
4.7 l/100km
CO2 Figures
g/km
Co2 standard
Euro 5+
Standard description
CO2 emissions and fuel consumption data are measured according to regulation 168/2013/EC. Figures for fuel consumption are derived from specific test conditions and are for comparative purposes only. They may not reflect real driving results.
