SPECIFICATIONS

ENGINE & TRANSMISSION
Type
Liquid-cooled, single-cylinder, 4 valve, DOHC
Capacity
398 cc
Bore
89 mm
Stroke
64 mm
Compression
12:1
Max power
42 PS / 41.4 bhp (30.89 kW) @ 9,000 rpm
Max Torque
37.5 Nm @ 7,500 rpm
System
Multipoint, sequential electronic fuel injection with electronic throttle control
Exhaust
Stainless twin-skin header system with stainless steel silencer
Final drive
X-ring chain
Clutch
Wet, multi-plate, slip and assist
Gearbox
6 Speed
CHASSIS
Frame
Hybrid spine and perimeter, tubular steel, bolt-on rear subframe
Swingarm
Twin-sided, cast aluminium alloy
Front wheel
Cast aluminium alloy, 17 x 3.0 in
Rear wheel
Cast aluminium alloy, 17 x 4.0 in
Front tyre
110/70 R17
Rear tyre
150/60 R17
Front suspension
43 mm USD big piston forks, 140 mm wheel travel
Rear suspension
Gas monoshock (RSU) with external reservoir and pre-load adjustment, 130 mm wheel travel
Front brakes
Single, 300 mm fixed disc, 4-piston radial caliper, ABS
Rear brakes
Single, 230 mm fixed disc, single-piston floating caliper, ABS
Instruments
Analogue speedometer, integrated multi-function LCD screen
DIMENSIONS & WEIGHTS
Width
857 mm
Height
1050 mm
Seat height
805 mm
Wheel base
1371 mm
Rake
24.4 °
Trail
107.6 mm
Wet weight
173 kg
Fuel capacity
13 l
CO2 FIGURES
Fuel consumption
3.6 l/100km
CO2 Figures
g/km
Co2 standard
Euro 5+

Standard description
CO2 emissions and fuel consumption data are measured according to regulation 168/2013/EC. Figures for fuel consumption are derived from specific test conditions and are for comparative purposes only. They may not reflect real driving results.

Born in the dirt. Built for the street.

Stripped back style with bold, flat track attitude

STRIPPED BACK BOLD STYLE

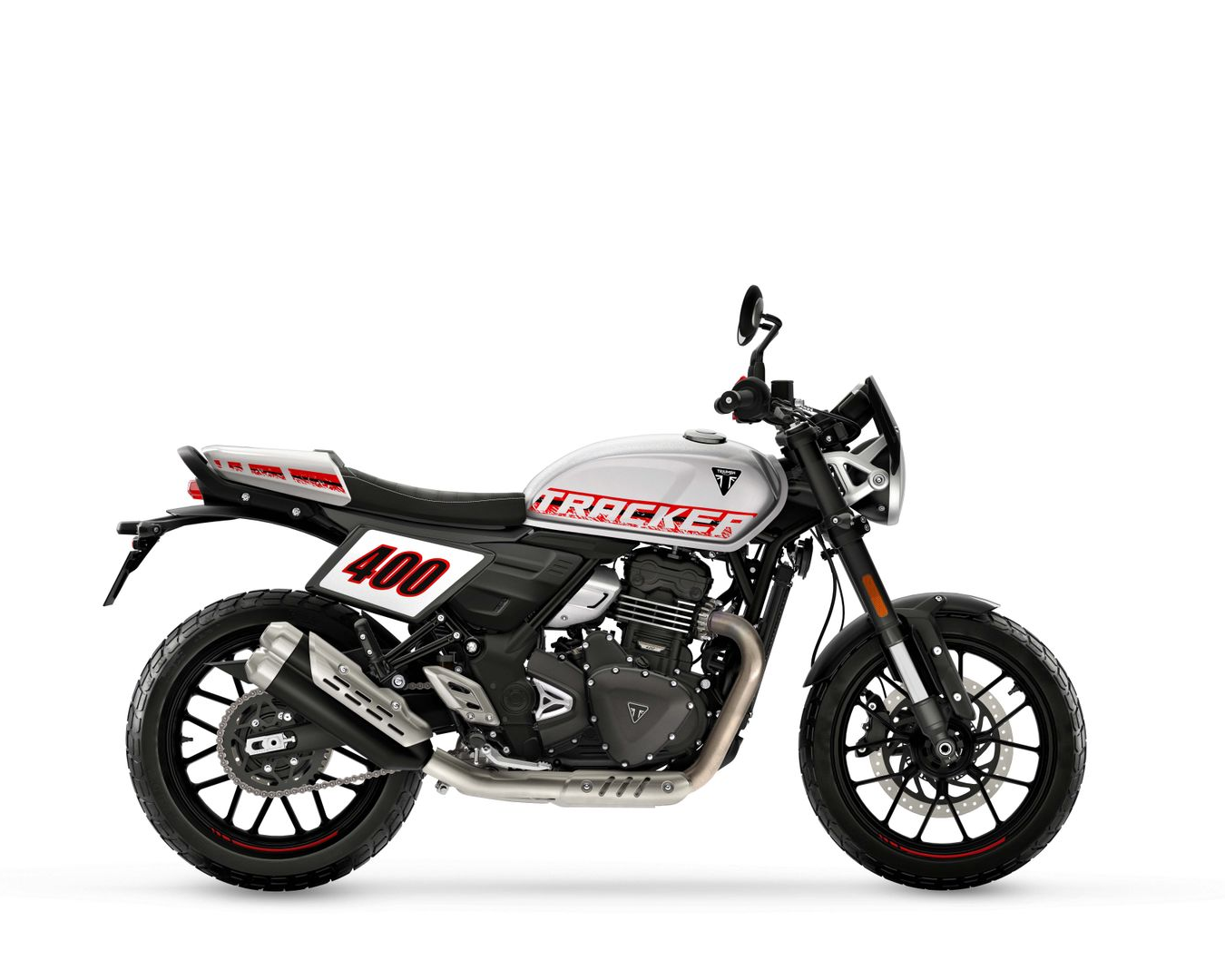

A stripped back bold style and a flat track racer attitude with race-inspired graphics, the Tracker 400 stands out like no other.

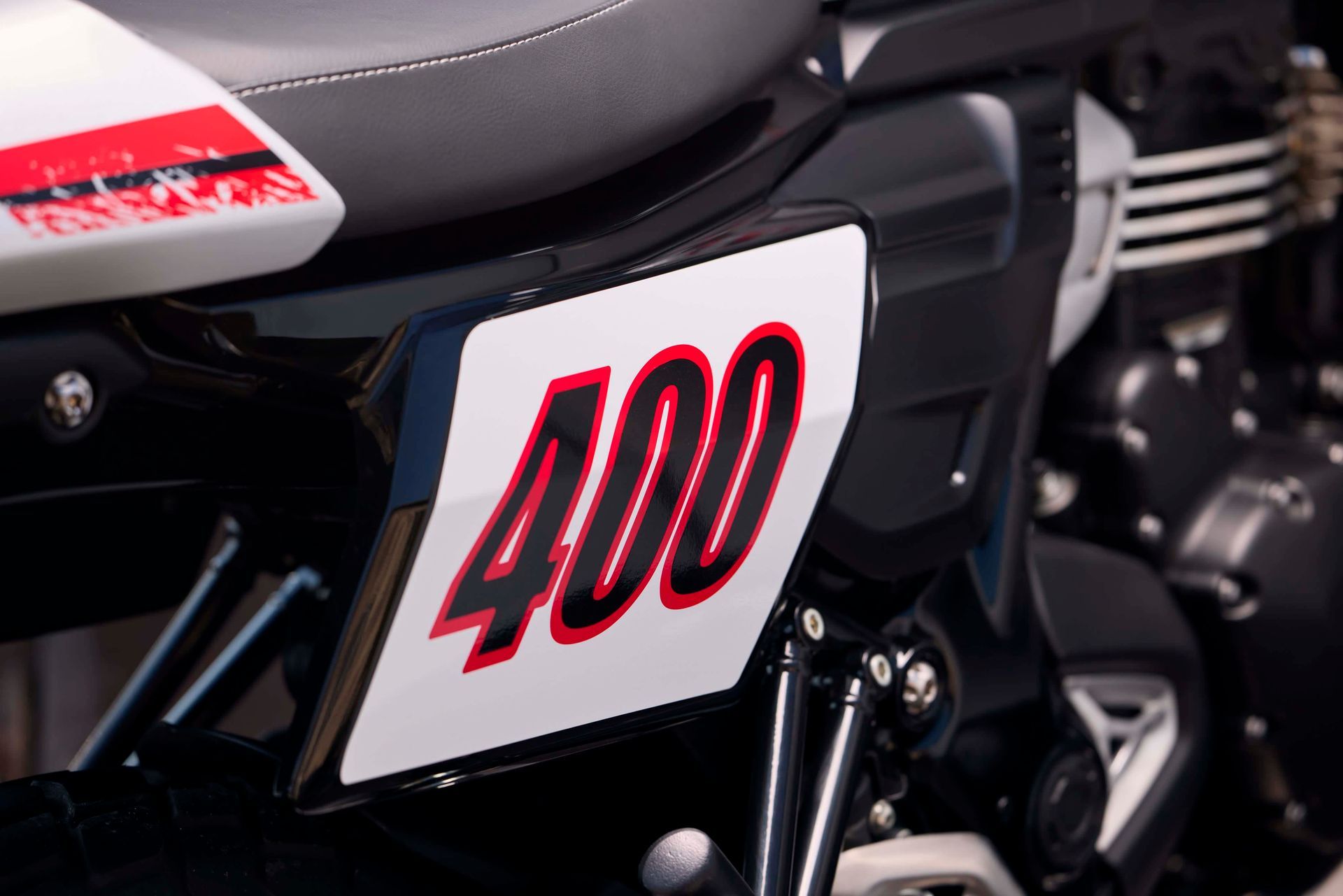

Inspired by flat track racers of the past, the Tracker 400 features taut lines around the knee cut outs on the fuel tank. A sporty flyscreen, seat cowl and number board proudly displaying the 400 race graphic.

TRACTION WITH ATTITUDE, GRIP WITH GRIT

Newly designed wheels with a dual spoke pattern, feature blocky Pirelli MT60 RS tyres that offer off-road style with on road performance.

FLAT TRACK RIDING STYLE

DOMINATING RIDING POSITION

Flat and wide bars gives an 'elbows out' riding position that's engaging and confident, paired with a swept back footpeg position to deliver a dominating ride that commands attention.

ACCESSIBLE SEAT HEIGHT

The 805 mm seat height and narrow standover width makes it easy to reach the ground at a standstill.

DEDICATED CHASSIS

Black anodised 43 mm upside down forks paired with a monoshock rear suspension unit offer an engaging and confidence inspiring ride.

IGH VALUE SPECIFICATION

SUSPENSION

Black anodised 43 mm upside-down forks and adjustable rear shock absorber deliver easy, agile, handling.

BRAKES

Four-piston radial callipers offer powerful and progressive braking performance with Bosch ABS providing additional safety.

DEDICATED ACCESSORIES

Make your Tracker 400 truly yours, with a range of dedicated accessories from engine bars to bar end mirrors. All covered by Triumph's 2 year unlimited mileage warranty.
